Power Band-pass Filter

4-10 poles , in band insertion loss 0.2 dB ,200W-2kW
Nechte toto pole prázdné

*required field send inquiry

Description

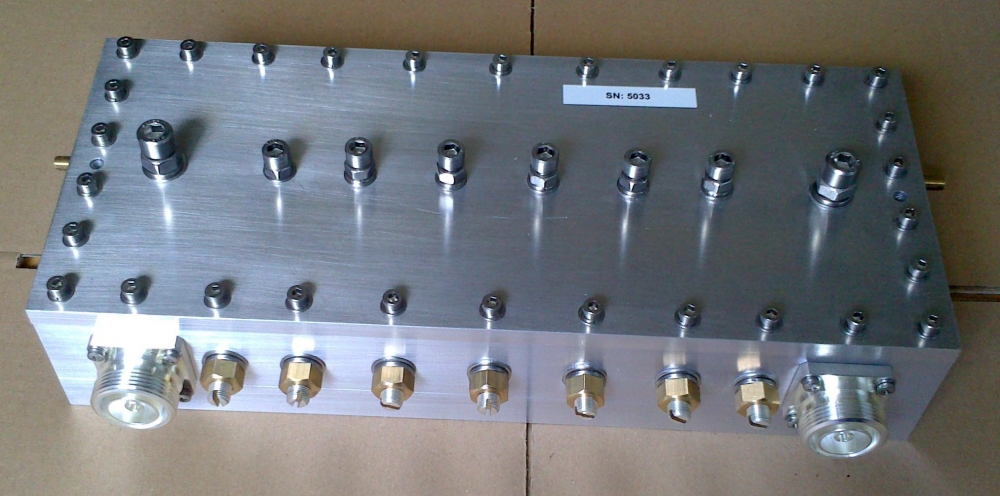

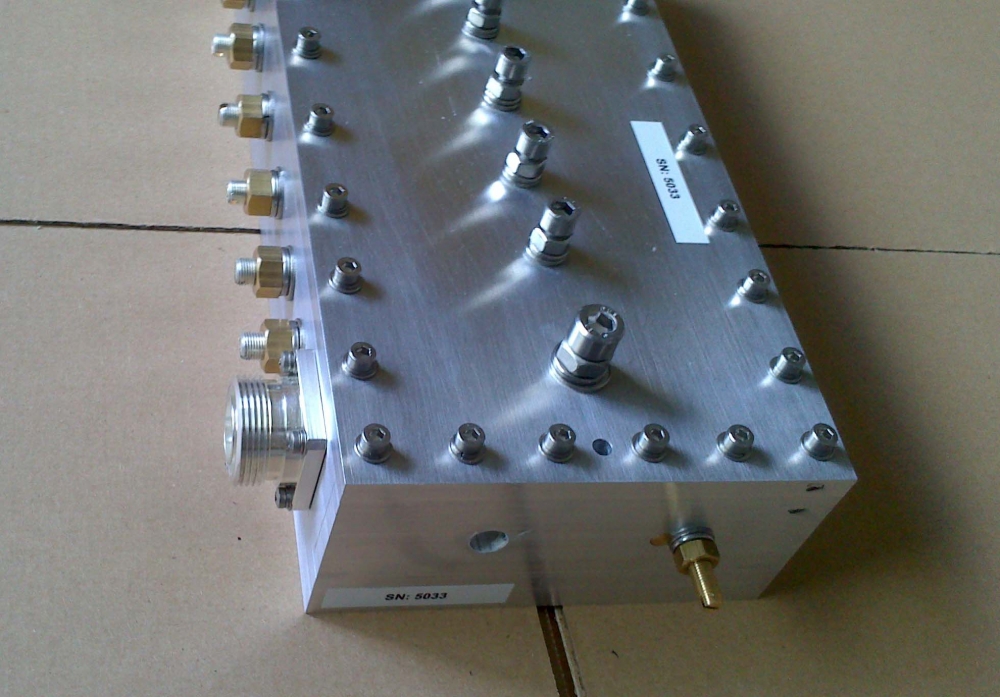

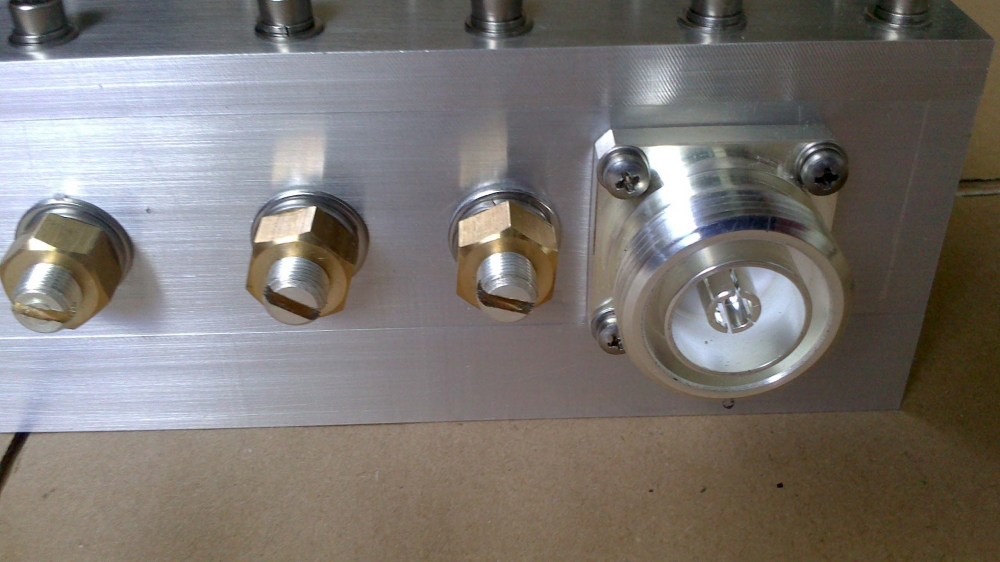

Power Band-pass filter for UHF

Instalation at output of transmitters.

Design of UHF filters with bandwidth  8MHz-400MHz

Filters are designed and tuned according customer demand of attenuation specification .


Characteristic of 50MHz filter . Maximal power according design 200W-2kW.

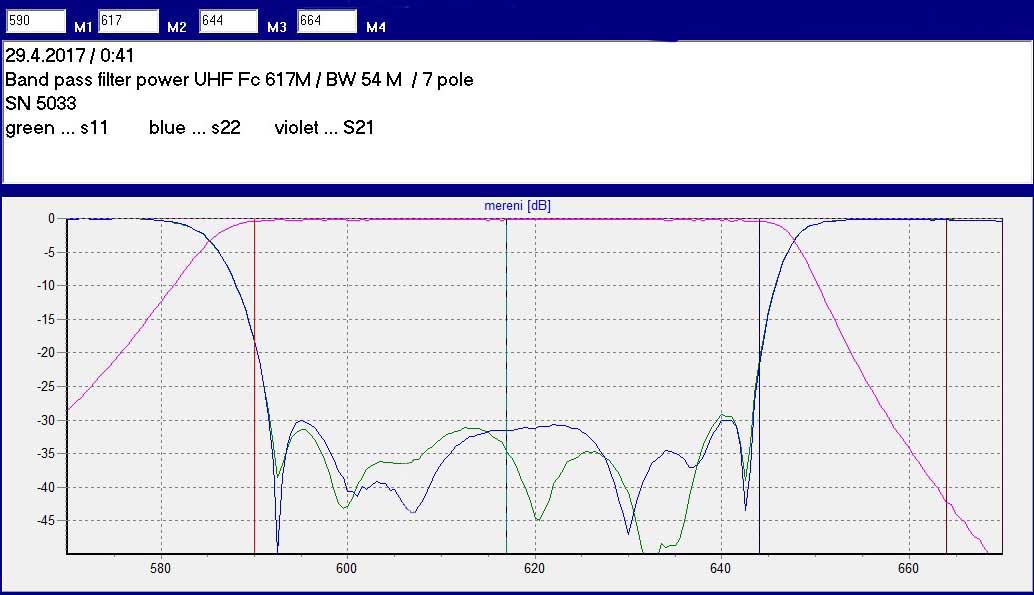

BPF UHF BW 50 MHz characteristics s11,s22, s21

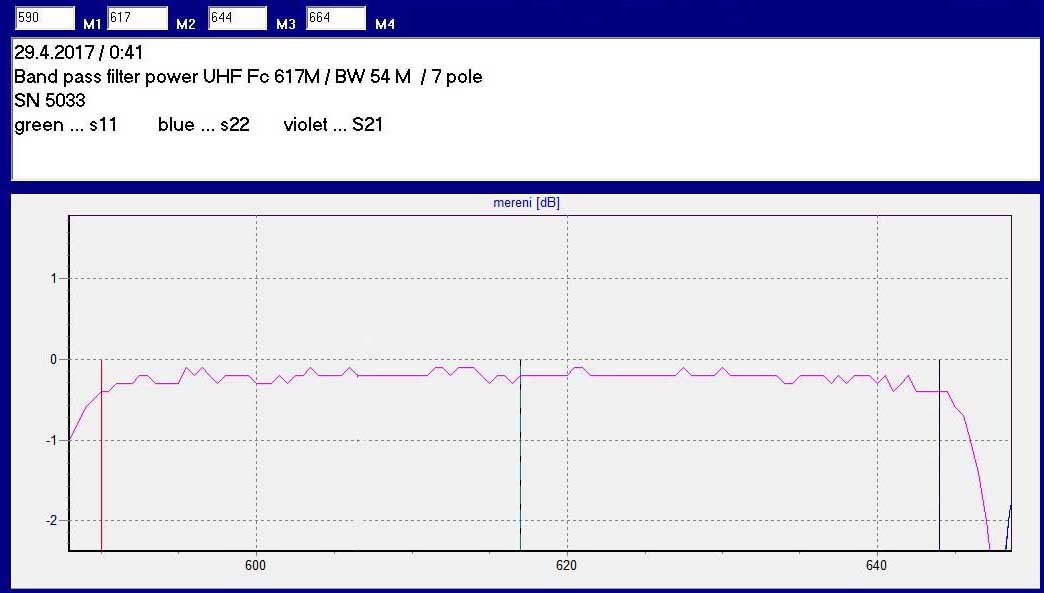

Insertion  loss

Průchozí útlum

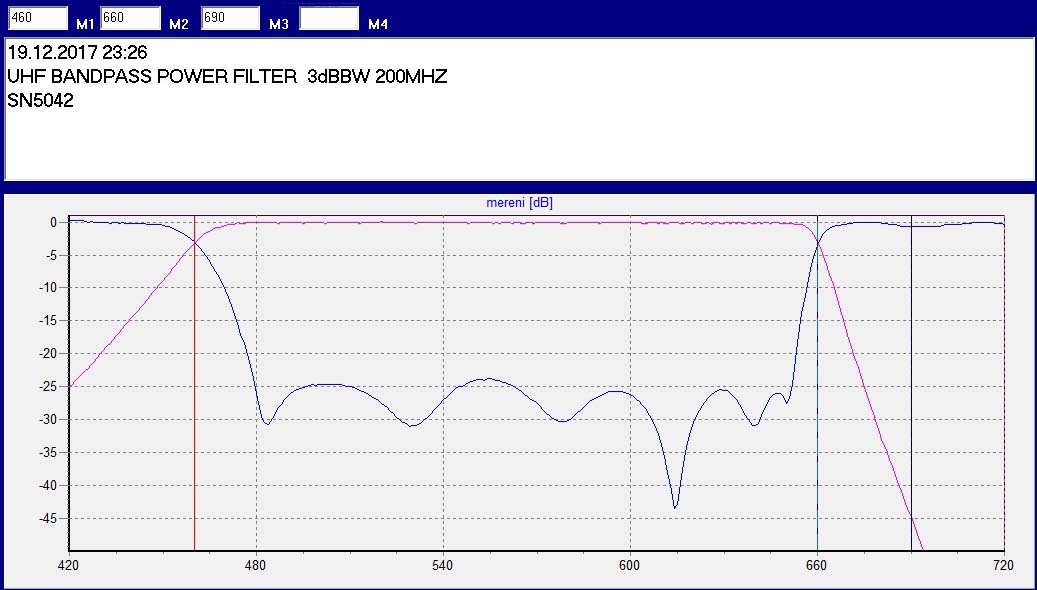

Characteristic of 200MHz filter . Maximal power according design 200W-2kW.


BPF UHF BW 50 MHz characteristics s11,s22, s21



Insertion  loss

Průchozí útlum
