Description

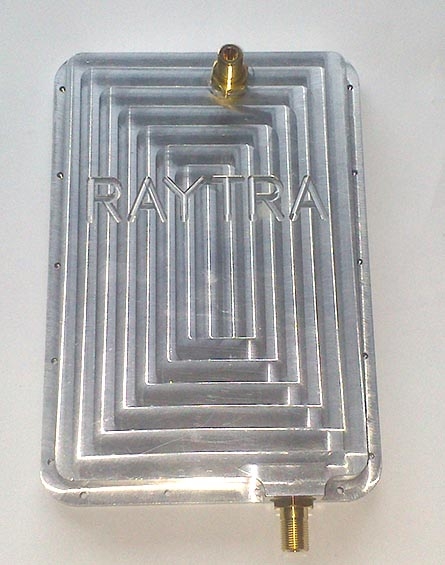

Electrical properties **TRX 2600.3.1.**
MMDS TRANSCEIVER	Downstream
RF Input	2500-2700 MHz
IF Input	230-430 MHz
Gain	27 dB
Gain flatness	+ - 1.6 dB, full band
Noise figure	3 dB type., 4.8 dB max
Output IP3	25 dBm
Inband spurious	-70 dBm

Electrical specification
RF Output	2085-2105 MHz
IF Output	23.125-43.125 MHz
Gain	25 dB
Gain flatness	+ - 1.5 dB, full band
Output 1 dB dompression point	26 dBm

General
Phase noise	-97 dBc/Hz@10kHz
LO leakage at RF/IF ports	-50 dBm
LO1 Frequency	2270 MHz
LO Frequency stabilty	+ - 14 kHz (-30°to 60°C)
IF Connector (Rx out/Tx in)	F 75 Ω
DC Consumption (12-20 Vdc)	7.5W
Operating temperature	-30°to 60°C
