UIP 414.20

Sector Antenna horizontal
Nechte toto pole prázdné

*required field send inquiry

Description

Electrical Properties UIP 414.20
Frequency Band [MHz] 3400 – 3600 MHz
VSWR 1.4
Gain 14.1 dBi
Impedance 50
Polarization Horizontal
Vert. unit  -3dB (-6dB) beam width  Hplane /Eplane 20° / 60° (85°)
Maximal power [W] 20
Connector Nf



Mechanical Properties
Material of antenna radome UV stable copolymer ABS-PMMA
Radome color white
height/width/thickness [ mm ] 355 / 151 / 34
Weight 1.2 kg
Max. wind speed 200 km/h

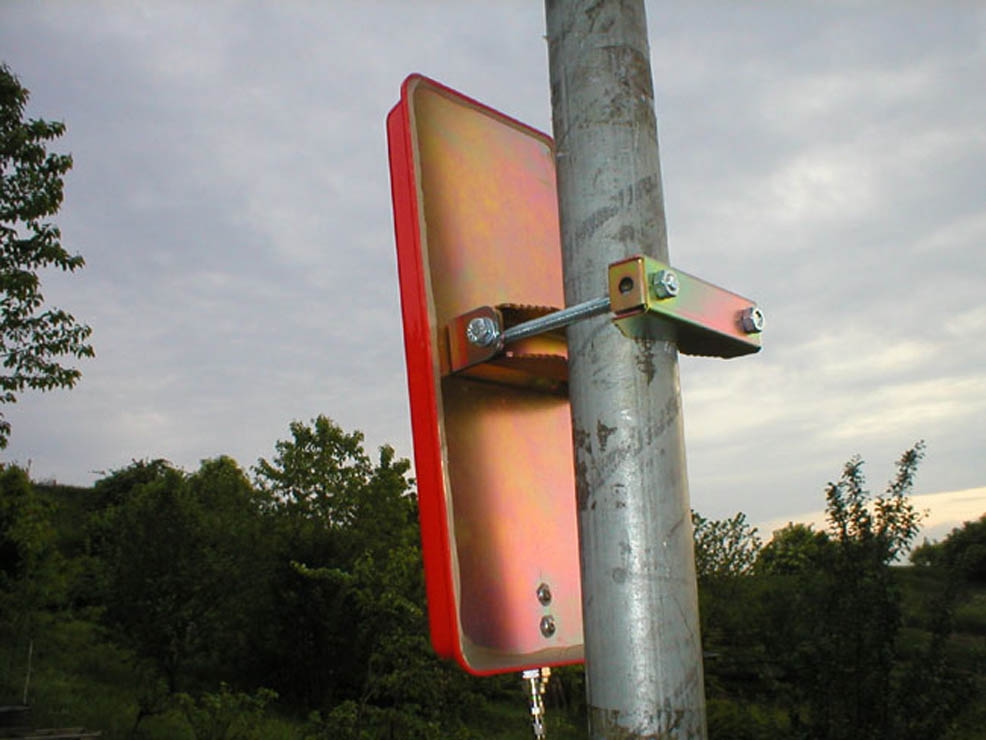

Mast mounting 20 - 75 mm
