UIP515.70

70° MIMO Sector Antenna 2xNf, socket for Rocket unit
Nechte toto pole prázdné

*required field send inquiry

Description

Electrical Properties UIP 515.70
Frequency Band [MHz] 5150 – 5850 MHz
VSWR 1.5
Gain 15-16 dBi
Impedance 50
Polarization MIMO - H/V dual

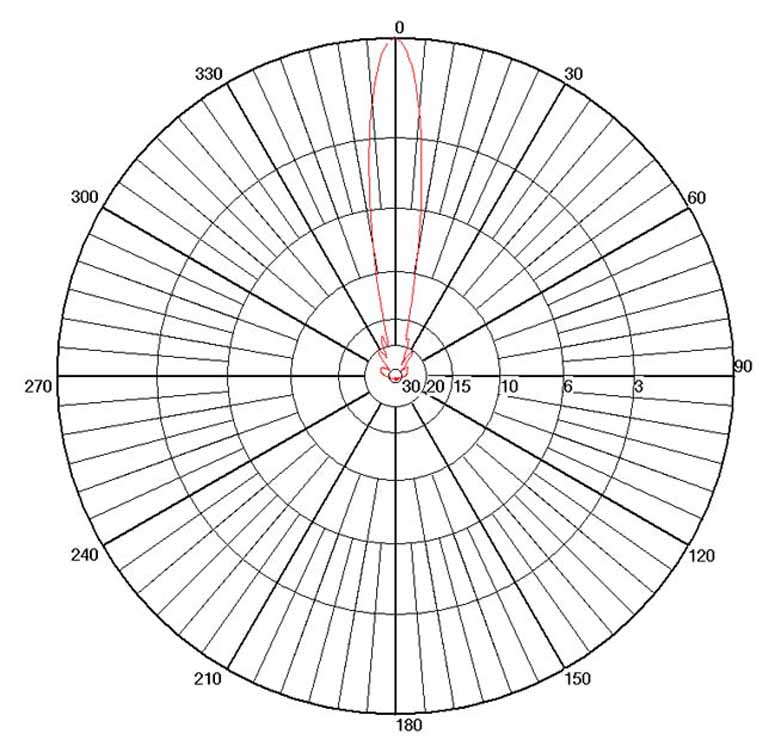

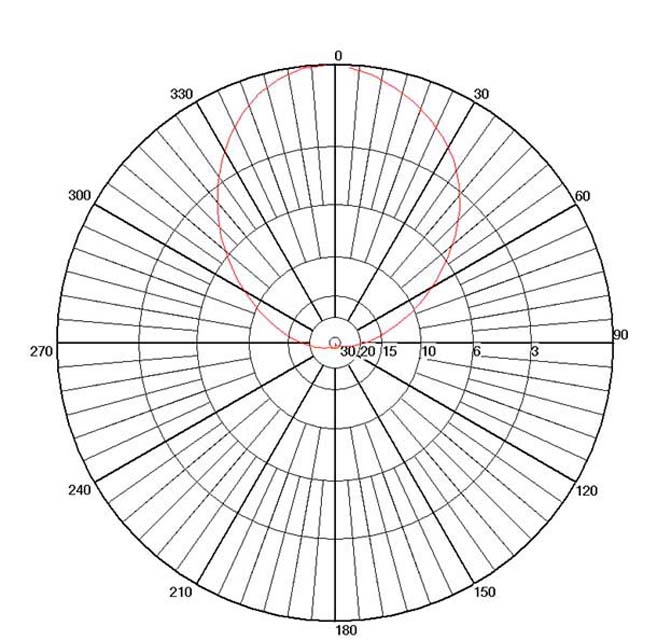

Vert. unit  -3dB (-6dB) beam width  Eplane /Hplane 13° (17°) / 77° (106°)

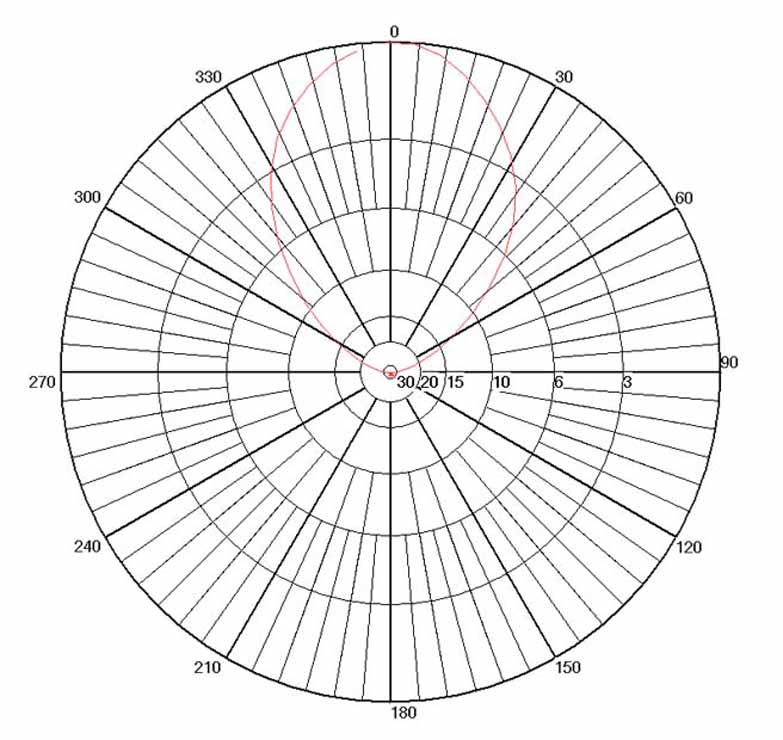

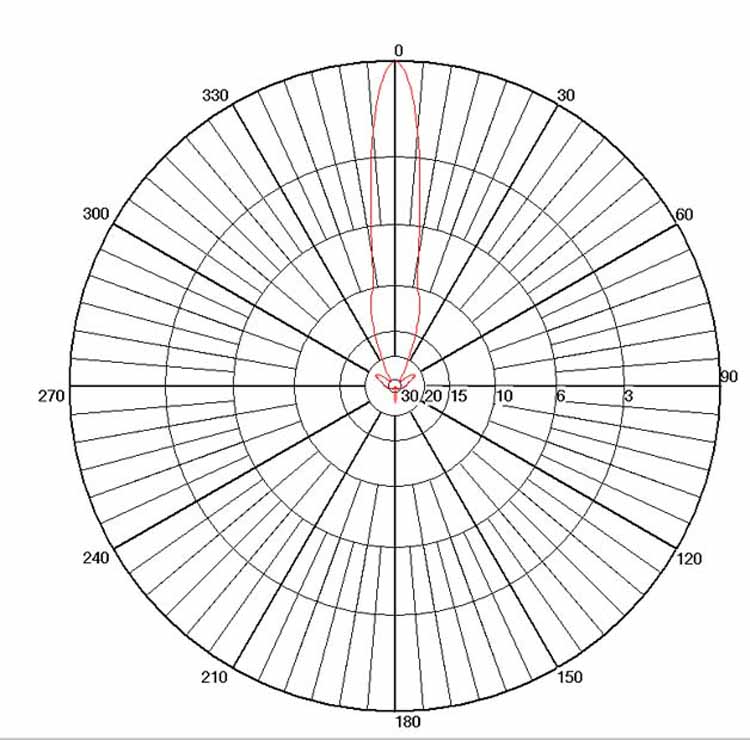

Hor. unit  -3dB (-6dB) beam width  Hplane /Eplane 12° (18°) / 62° (84°)
Maximal power [W] 10

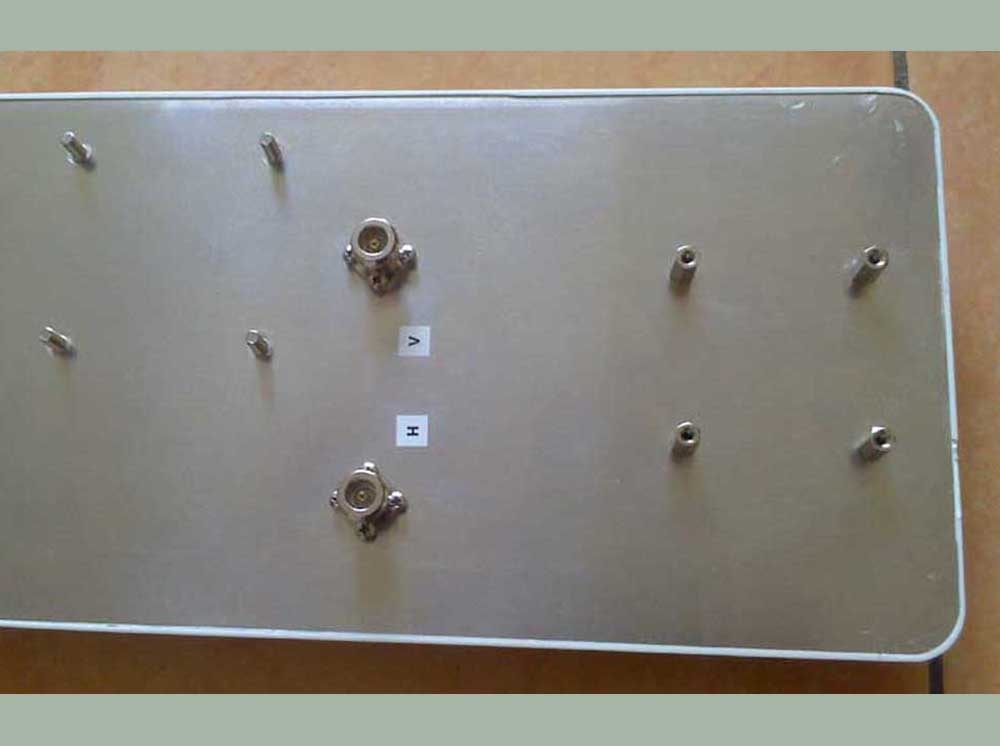

Connector 2xN-f



Mechanical Properties
Material of antenna radome UV stable copolymer ABS-PMMA
Radome color white
height/width/thickness [ mm ] 355 / 150 / 30
Weight 1 kg
Max. wind speed 200 km/h
