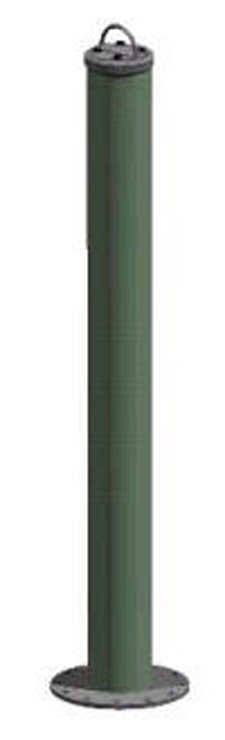

UMH 7XX

Broadcasting antenna for mounting on the top of mast
Nechte toto pole prázdné

*required field send inquiry

Description

Electrical Properties UMH 7XX
Frequency Band [GHz] 2.15,2.2,2.6 - according specification
VSWR <1.5
Gain [dBi] 8 - 14
Impedance [Ω] 50
Polarization Horizontal / Vertical according specification
-3dB beam width  of vertical diagram  3° - 16°
Maximal power [W] 100
Connector N-f



Mechanical Properties
Material of antenna radome fibre glass composite
Radome color white, other on demand
Radonediameter [mm] 150
Weight               [kg]   20 / 40
Height 600 - 2500
Max. wind velocity   [km/h] 200
