Directional Coupler DCO2200.1

1000-3000 MHz band , 30 dB directivity , 100W
Nechte toto pole prázdné
*required field send inquiry

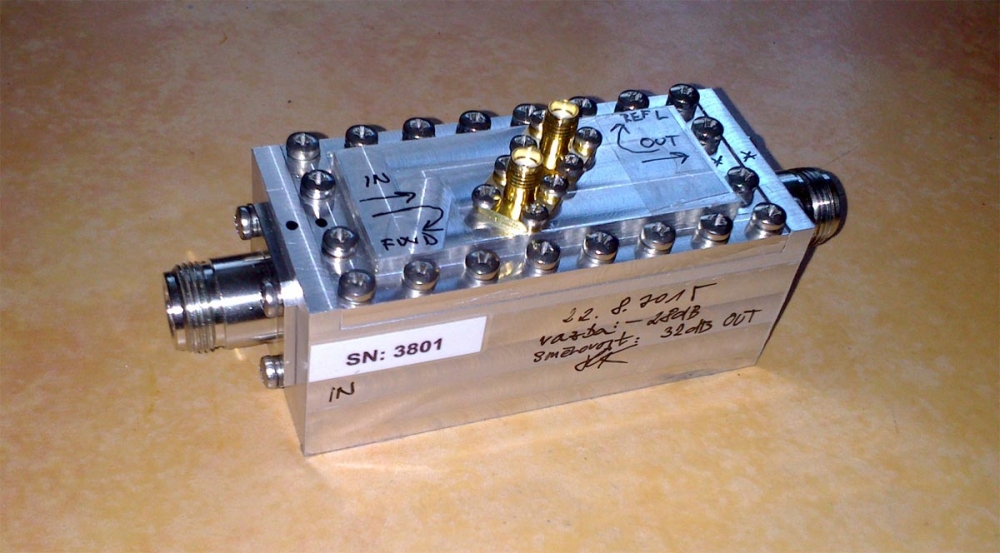

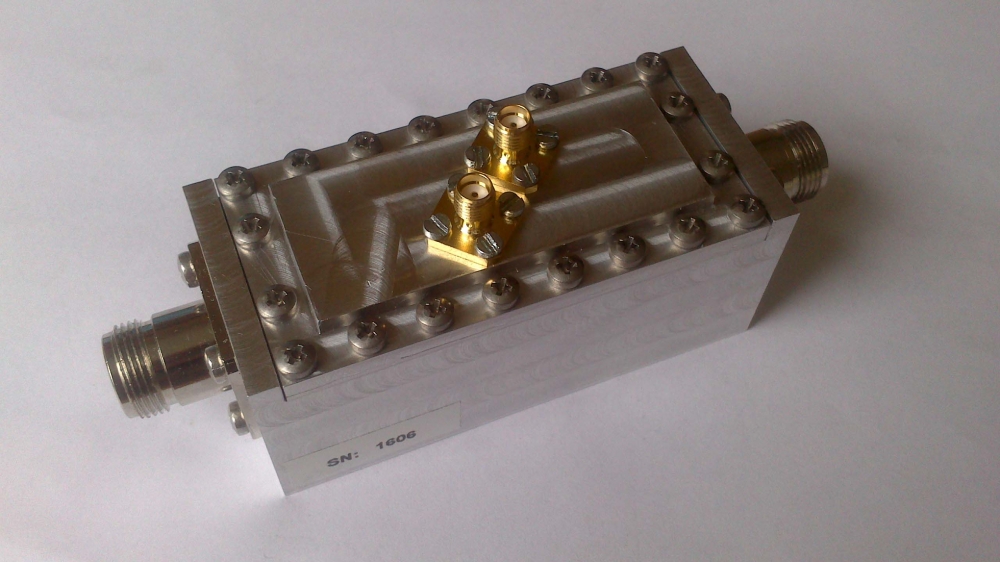

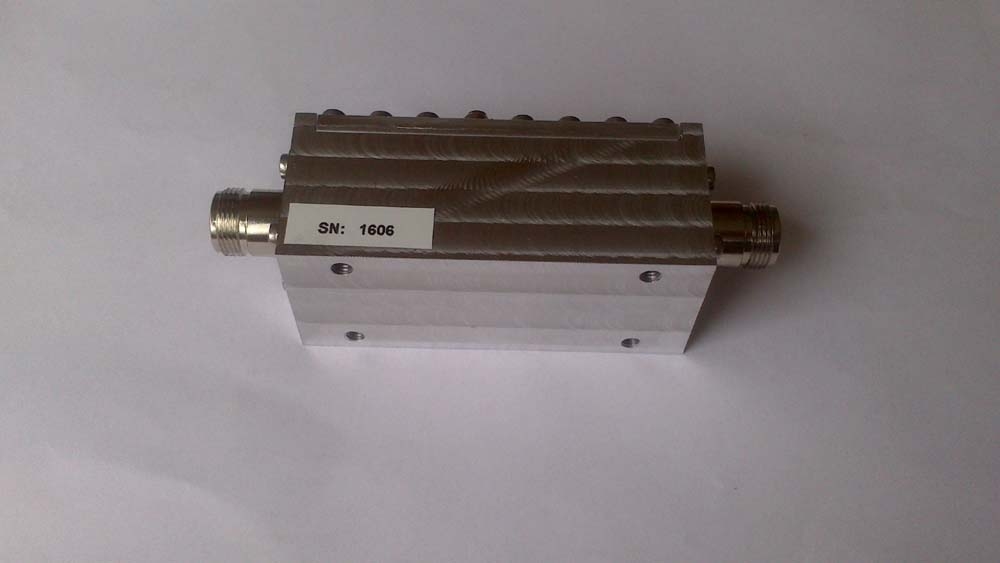

Directional coupler
good directivity from UHF to 3 GHz

directional coupler UHF-3GHZ

Elektrical Properties DCO 2200.1
Frequency Band [MHz] 1000-3000MHz
directivity in band  2200-2300MHz 30dB
coupling  27 dB
insertion loss  0.1 dB
Peak power 500W
Average main line power  100W
connectors of main line   2xNf
connectors of coupling line 2xSMA-f
impedance 50 ohm
