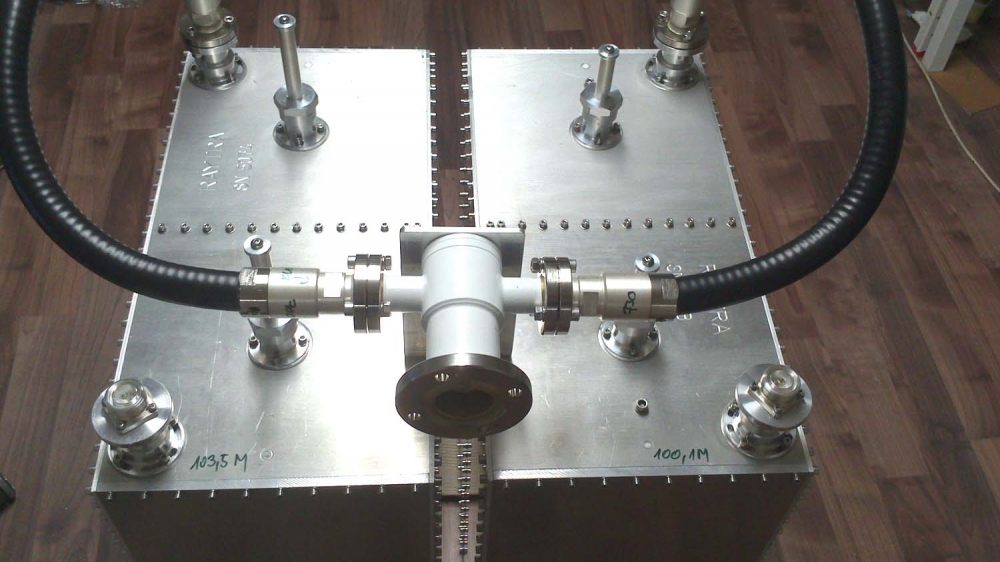

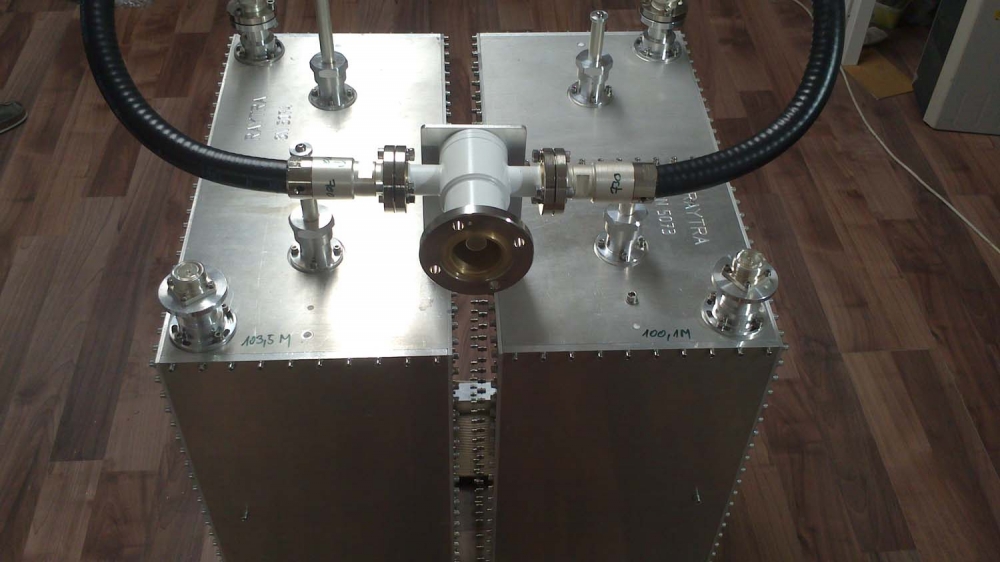

Description

2x2 cavities
input connector EIA 7/8 " , DIN 7/16
output connector EIA 1a5/8" , EIA 7/8 " , DIN 7/16
for connector EIA 7/8" at input is maximal input power at each port 3.5kW
insertion loss ... 0.35 dB
3dB bandwidth of filter ... 550 kHz
dimensions ... 560x570x1100 mm
weight ... 70kg
order code ... RAFC250- 2D-33-5-2kW

typical configurations
IN 2xDIN 7/16 OUT DIN 7/16
85 mm cavities 2x2 ... RAFC080-2D-33-3-0.2kW
150mm cavities 2x2 ... RAFC150-2D-33-3 - 1kW

IN 2xDIN 7/16 OUT EIA 7/8''
250mm cavities 2x2 ... RAFC250-2D-33-4 -2kW

IN 2xDIN 7/16 OUT EIA 1 5/8"
250mm cavities 2x2 ... RAFC250-2D-33-5- 2kW

contact us for quote

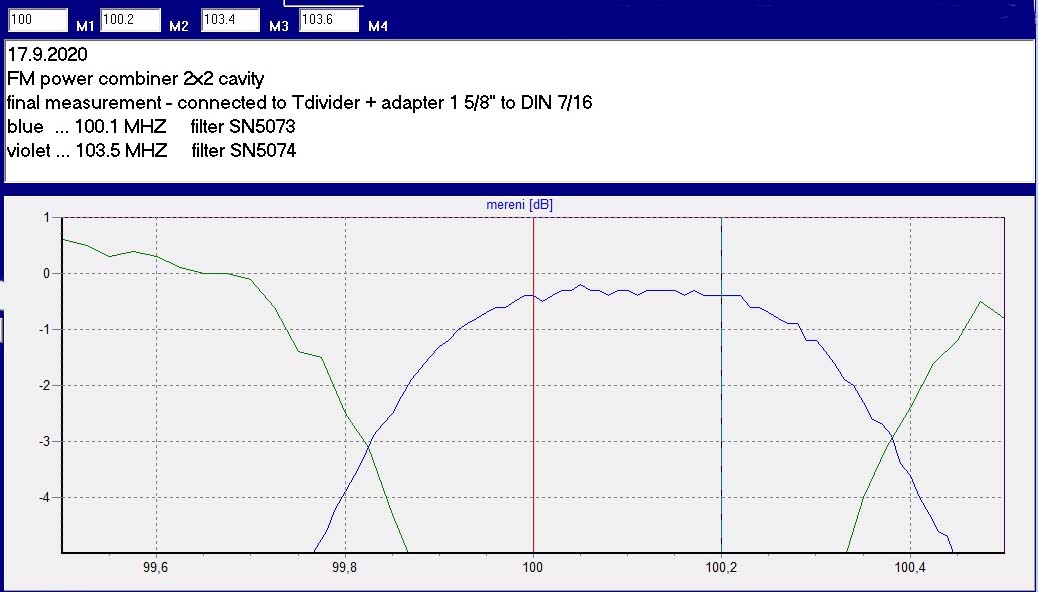

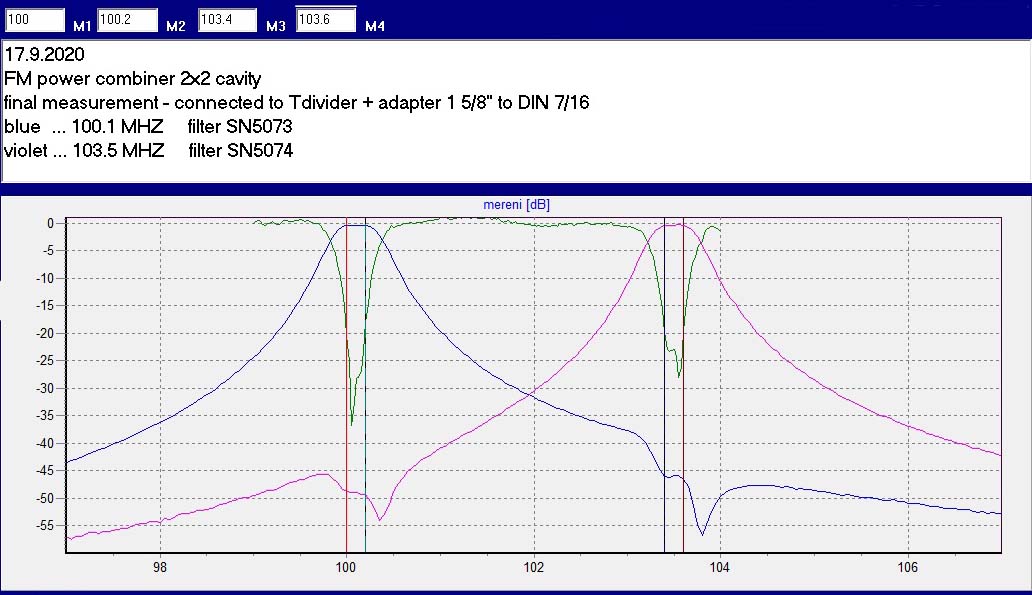

insertion loss

types :
RAFC250- 2D-33-5-2kW

-RAFC250- ... type with 250 mm cavities

-2D- ... noting of number of cavities in filter and number of inputs
2 ... double cavity filter
3 ... triple cavity filter
D ... 2 inputs
T ... 3 inputs
Q ... 4 inputs

-33- ... coding of input connectors
(1.. SMA,2..Nf,3..DIN7/16,4.. EIA 7/8 ,5..EIA1 5/8 )
3 ... 1. input connector :DIN 7/16 (code of conenctor =3)
3 ... 2. input connector :DIN 7/16 (code of conenctor =3)

-5- ... code of output connector
(1.. SMA,2..Nf,3..DIN7/16,4.. EIA 7/8 ,5..EIA1 5/8 )
5 ... output connector : EIA 1 5/8"

-2kW- ... max. power at input
