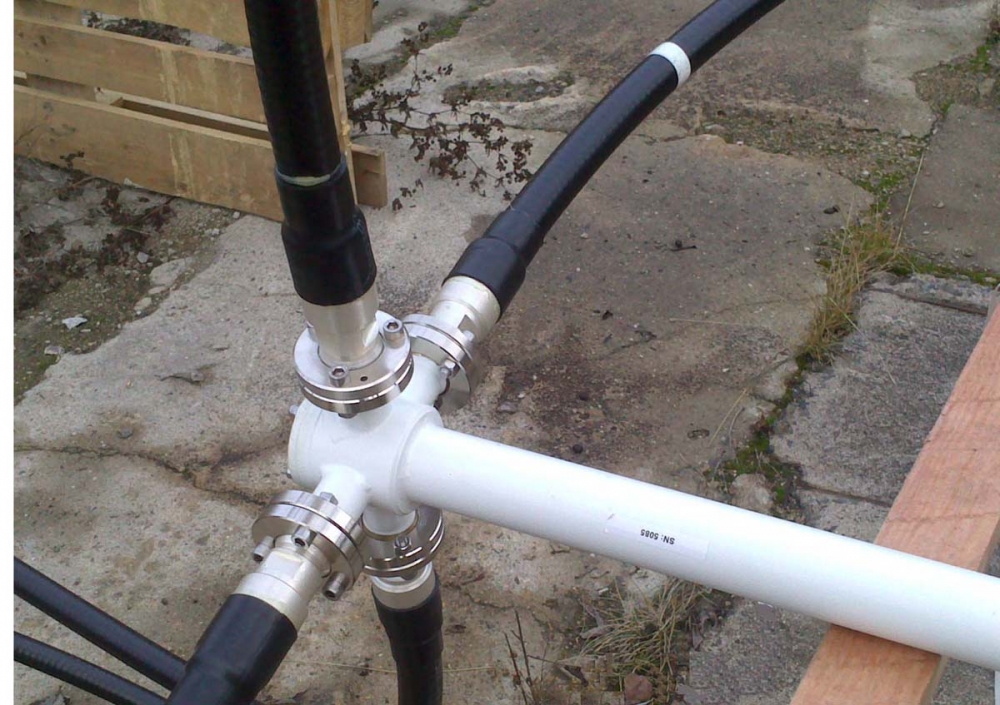

Power 12kW divider
for greater FM radio transmitting antenna systems. Two and multiple way division with possibility of unequal power division .
order code : RAPDFM 4.4.5.403.12

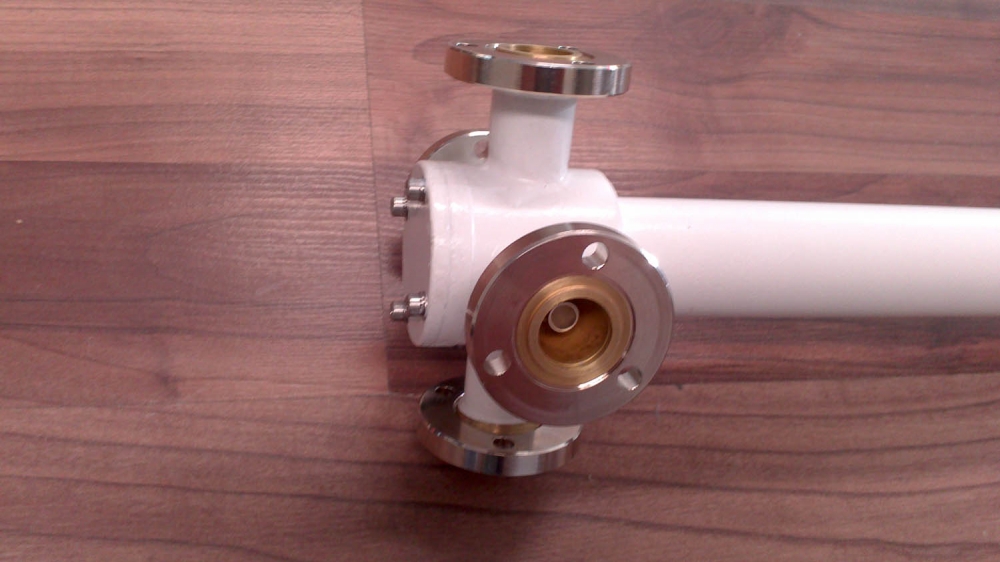

4 outputs EIA 7/8 , input 1xEIA 1 5/8 , type with 40mm tube ,power 12kW
noting ... RAPDFM G.H.I.J.P
RAPDFM ... RAYTRA FM radio band 87-108M power divider
G ... number of outputs
H ... code of connector at output
I ... code of connector at input
(SMA ... 1 , Nf ...2 , DIN 7/16 ...3 , EIA 7/8 ...4 , EIA 1 5/8 ...5)

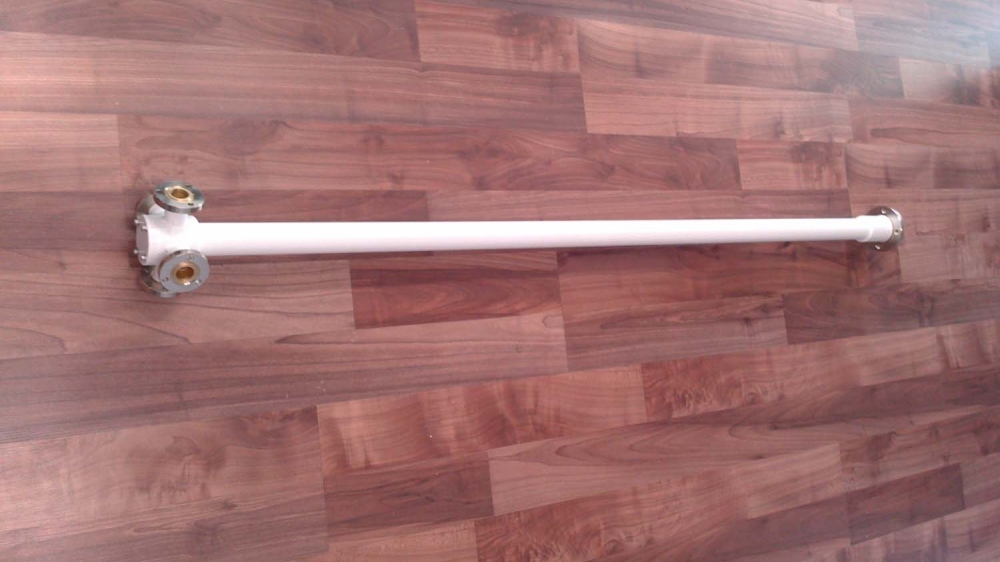

J ... 403= type with 40mm tube
P ... power according connectors and type of divider

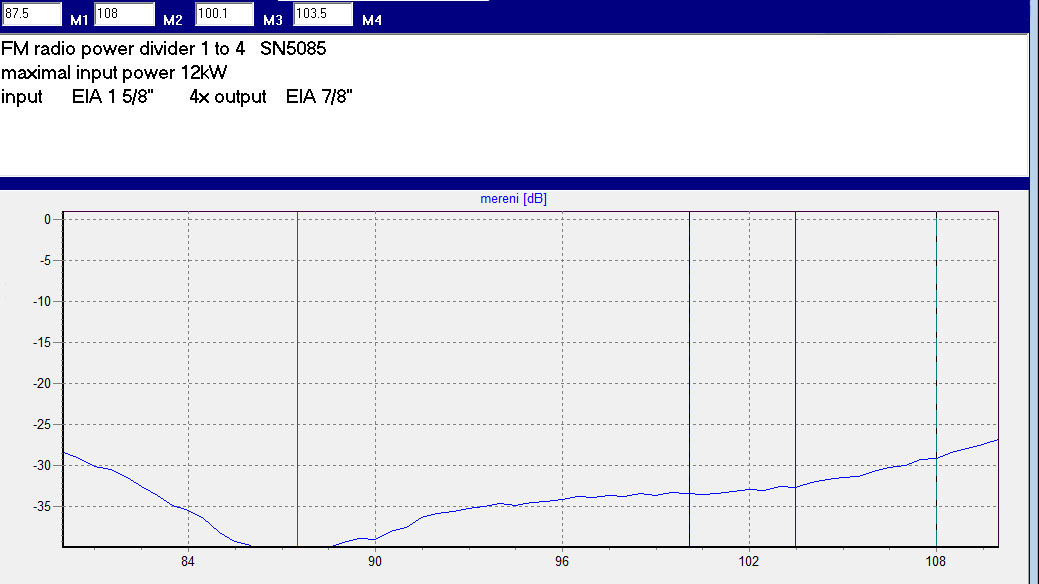

odraz s11 dB
Contact us with your demand for number of outputs and power division
Electrical properties | |
Frequency band [MHz] | 87-108 |
VSWR | 1.05 |
insertion loss | <0.1 dB |
division atenuation | 6 dB for 4 outputs |
maximal average power | 12kW |

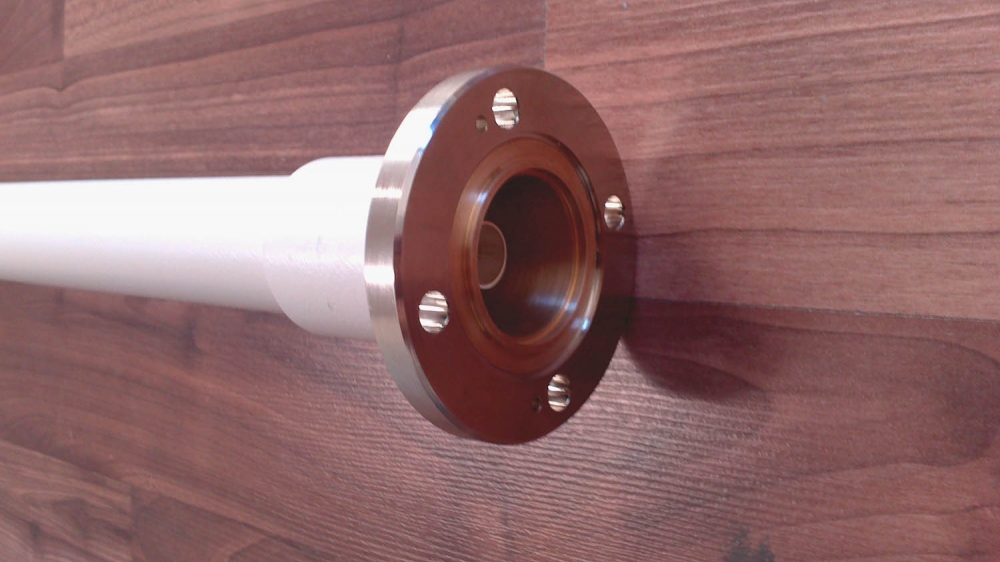

input connector | EIA 1 5/8 " |
output connector | 4xEIA 7/8" |
center conductor | silvered brass |
