Description

Electrical Properties	MK 3.5.1.
Frequency Band [MHz]	2250 – 2300 MHz
Nf (dB)	<1.7
G (dB)	30-40 dB
P1	15
Standard LO frequency [MHz]	1710,1734,1766
LO phase noise [dBc/10 kHz]	96

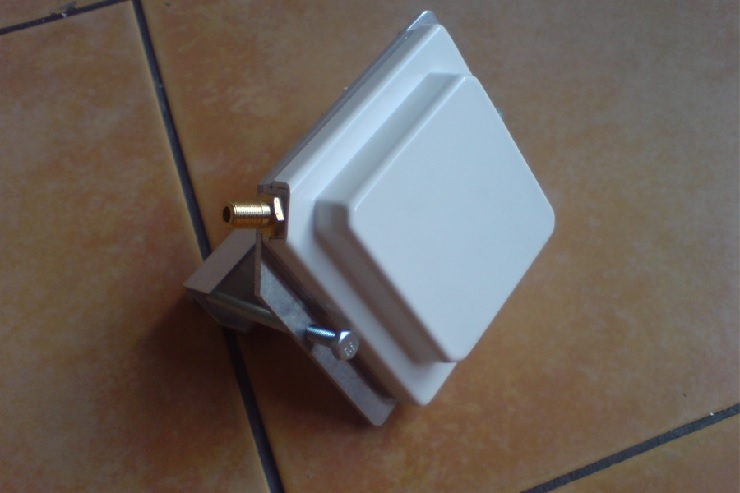

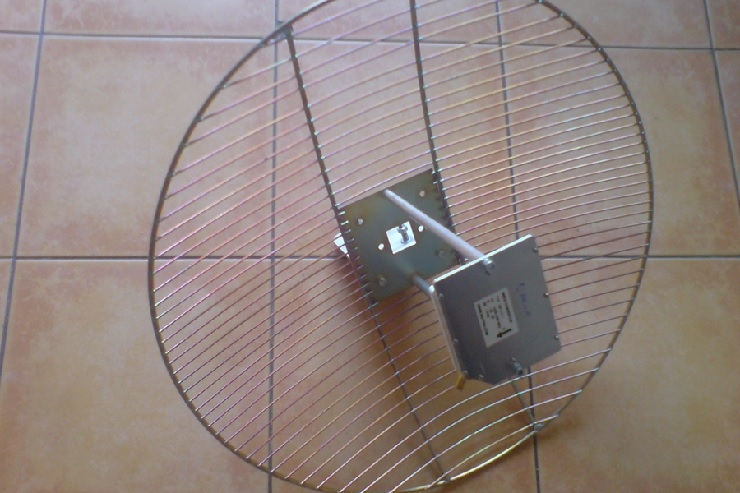

Antenna Gain dBi convertor/convertor in grid	7 / 17
Feeding U/I	14-19 V / 230 mA

Mechanical Properties
Material of antenna radome	UV stable ABS
height/width/thickness [ mm ]	104 / 104 / 25
Weight	0.25 kg
Construction	outdoor use
