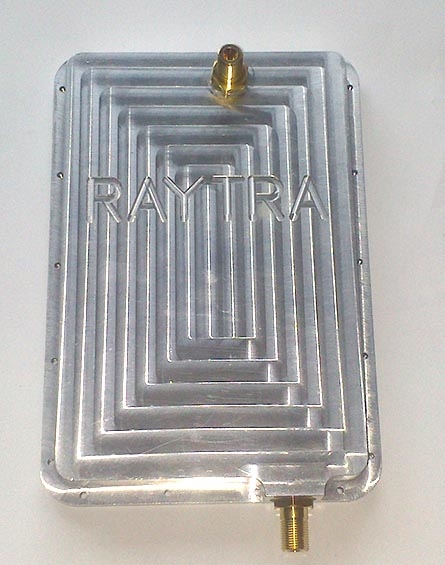

TRX 2600.3.2

2.6G band, RF 2.5-2.7G/2085-2105M , IF 214-414/27.6-47.6M
Nechte toto pole prázdné

*required field send inquiry

Description

Electrical properties                    TRX 2600.3.2
MMDS TRANSCEIVER Downstream
RF Input 2500-2700 MHz
IF Input 222 - 422 MHz
Gain 27 dB
Gain flatness + - 1.6 dB, full band
Noise figure 3 dB type., 4.8 dB max
Output IP3 25 dBm
Inband spurious -70 dBm

Electrical specification
RF Output 2085-2105 MHz
IF Output 27.6-47.6 MHz
Gain 25 dB
Gain flatness + - 1.5 dB, full band
Output 1 dB dompression point 23 dBm

Electrical specification            Antena
Gain  14 dBi


General
Phase noise -97 dBc/Hz@10kHz
LO leakage at RF/IF ports -50 dBm
LO1 Frequency 2286 MHz
LO Frequency stabilty + - 14 kHz (-30°to 60°C)
IF Connector (Rx out/Tx in) F 75 Ω
DC Consumption (12-20 Vdc) 7.5W
Operating temperature
-30°to 60°C
7.5W
Dimensions 233x233x20 mm
