Description

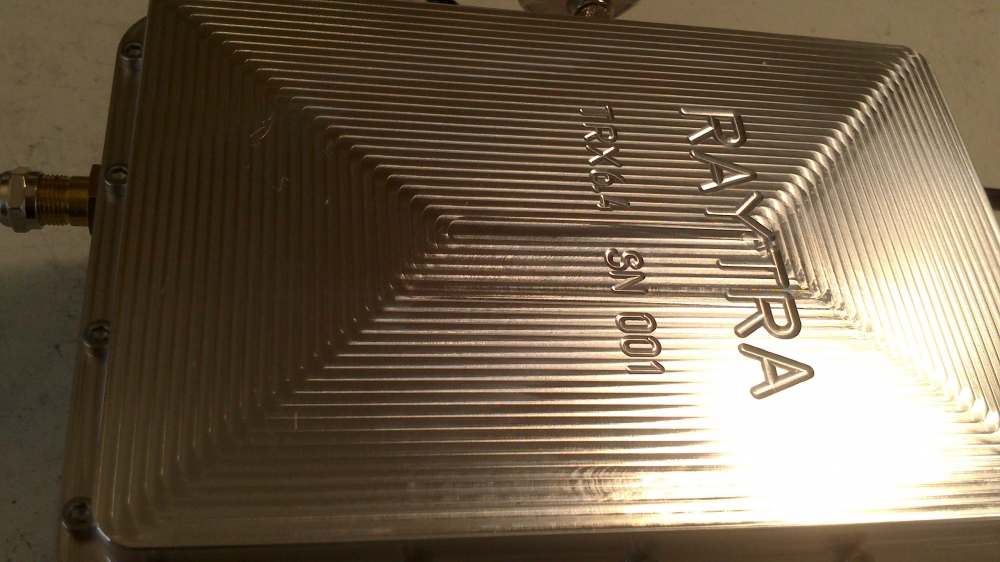

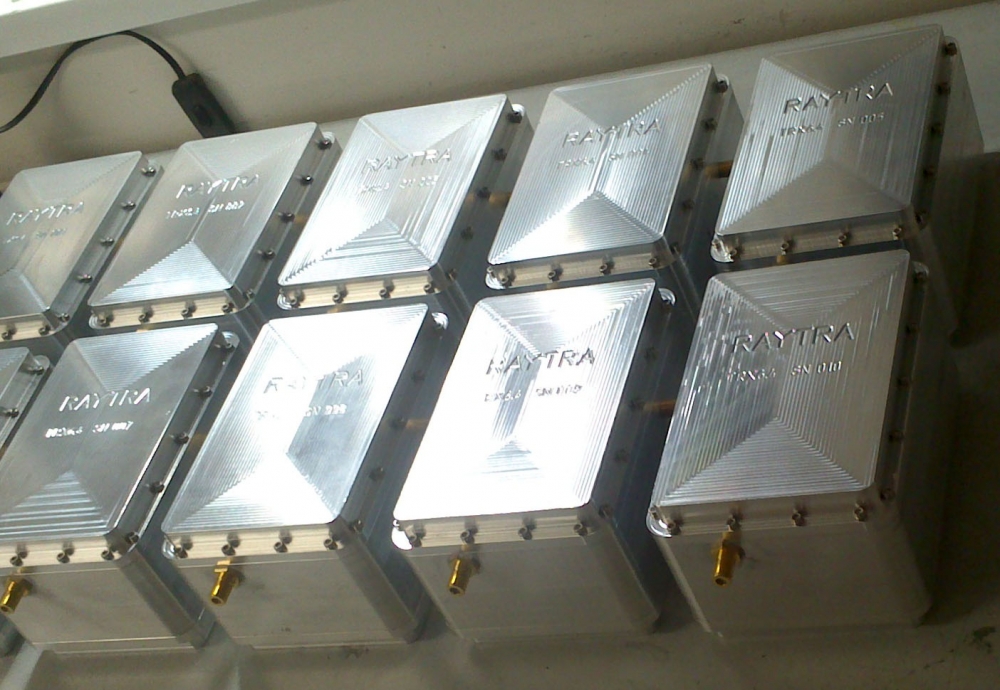

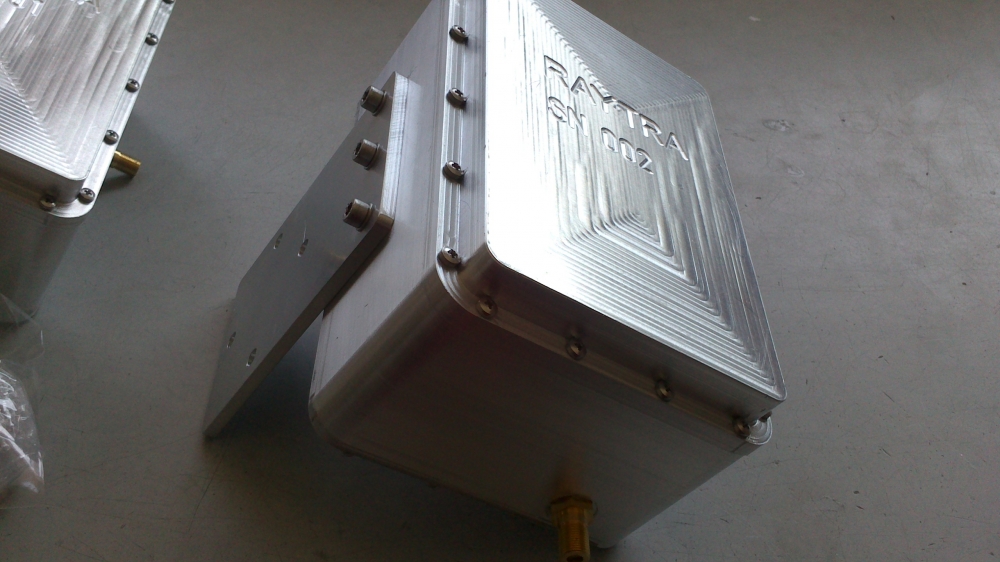

UHF Transceiver (two way convertor) for docsis wireless networks with 7 pole milled cavity diplex filters precisely tuned to insure sharp filtration .
Possible to retune diplexer to near bands within current design during production. Good filtration and good LO phase noise enables use of high modulations.
Electrical properties TRX UHF.6.4
| MMDS TRANSCEIVER |
Downstream |
| RF Input (DS) |
578-602 MHz
|
| Gain RX (DS) |
20 dB |
| Gain flatness |
+ - 1.5 dB, full band |
| Noise figure |
4 dB type |
|
|
| Electrical specification |
Upstream |
| RF Output (US) |
542-554 MHz |
| IF input |
36-48 MHz |
| Gain TX (US) |
24 dB |
| Gain flatness |
+ - 1.5 dB, full band |
| Po DVBC 6MHz/MER 36dB |
25 dBm |
| General |
|
| Phase noise |
-105 dBc/Hz@10kHz |
| LO leakage at RF/IF ports |
-60 dBm |
| LO Frequency stabilty |
+-5 PPM / -20° to +70°C |
| IF Connector (Rx out/Tx in) |
F 75 Ω |
| DC Consumption (12-20 Vdc) |
7.5W |
Operating temperature
|
-40°to 70°C (tested up to +80C) |
