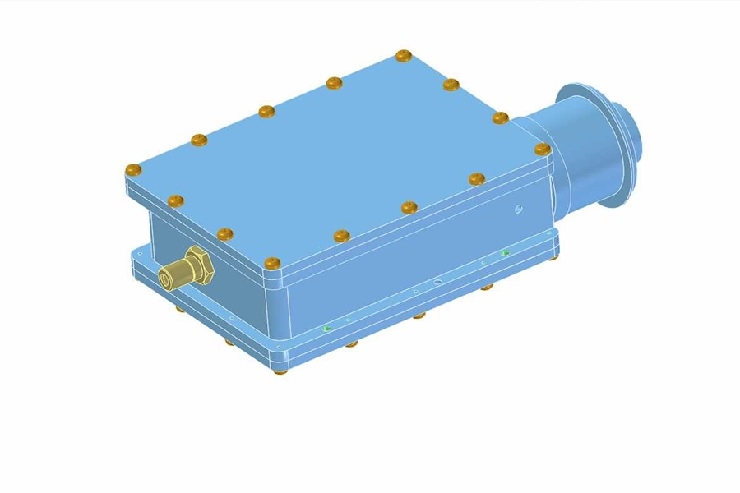

TRXV12 Series – 2-Way K-Band Frequency Converter

The TRXV12 Series is a professional 2-way K-Band frequency converter designed for demanding microwave and satellite communication applications. The converter incorporates a high-performance cavity bandpass filter, ensuring excellent selectivity, low insertion loss and outstanding suppression of unwanted signals.

The TRXV12 Series is primarily intended for professional DOCSIS broadband networks, broadcast applications and RF communication systems, where reliable frequency conversion and long-term stability are essential. The converter can be customized to customer-specific operating frequencies, local oscillator frequencies and bandwidth requirements, making it suitable for both standard and specialized applications.

Typical Applications

DOCSIS broadband networks
HFC (Hybrid Fiber Coax) infrastructure
CATV headends and RF signal distribution
RF over Fiber systems
Satellite communication (SATCOM) ground stations
VSAT communication terminals
Satellite uplink and downlink frequency conversion
Broadcast signal transport for TV and radio
Point-to-Point microwave communication links
Telecommunication infrastructure
OEM microwave equipment and custom RF solutions

Key Features

Professional 2-way K-Band frequency converter
Integrated high-Q cavity bandpass filter
Customer-specific operating frequencies available
Custom local oscillator frequencies on request
High frequency stability
Rugged industrial construction
Designed and manufactured by RAYTRA Microwave Devices

Electrical properties **TRX V 12.1**
MMDS TRANSCEIVER	Downstream
RF Input	11717-12025 or 12024-12322 MHz
Gain	33 dB
Gain flatness	+ - 2 dB, full band
Noise figure	2 dB type
Output IP3	15 dBm

Electrical specification
RF Output	10650-10680 MHz
IF Output	30-60 MHz
Gain	30 dB
Gain flatness	+ - 1.5 dB, full band
Output 1 dB dompression point	18 dBm

General
Phase noise	-98 dBc/Hz@10kHz
LO leakage at RF/IF ports	-50 dBm
LO Frequency stabilty	+ - 14 kHz (-30°to 60°C)
IF Connector (Rx out/Tx in)	F 75 Ω
DC Consumption (12-20 Vdc)	7.5W
Operating temperature -30°to 60°C	-30°to 60°C
Weight	0.4 Kg
