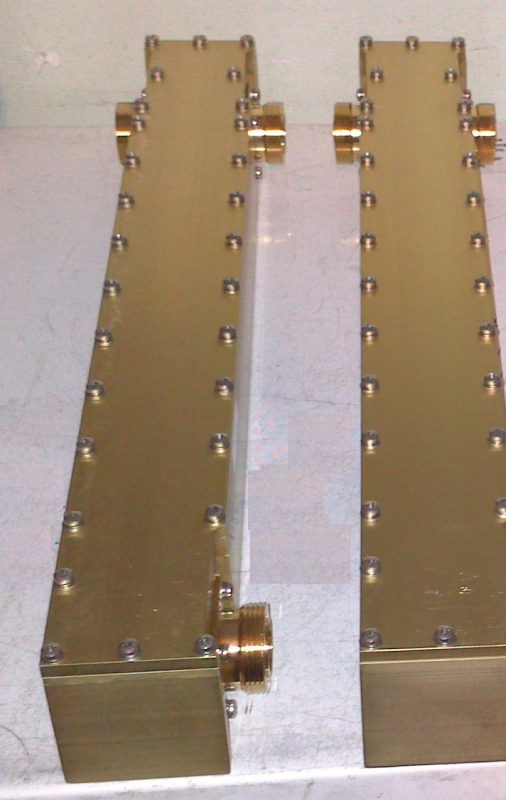

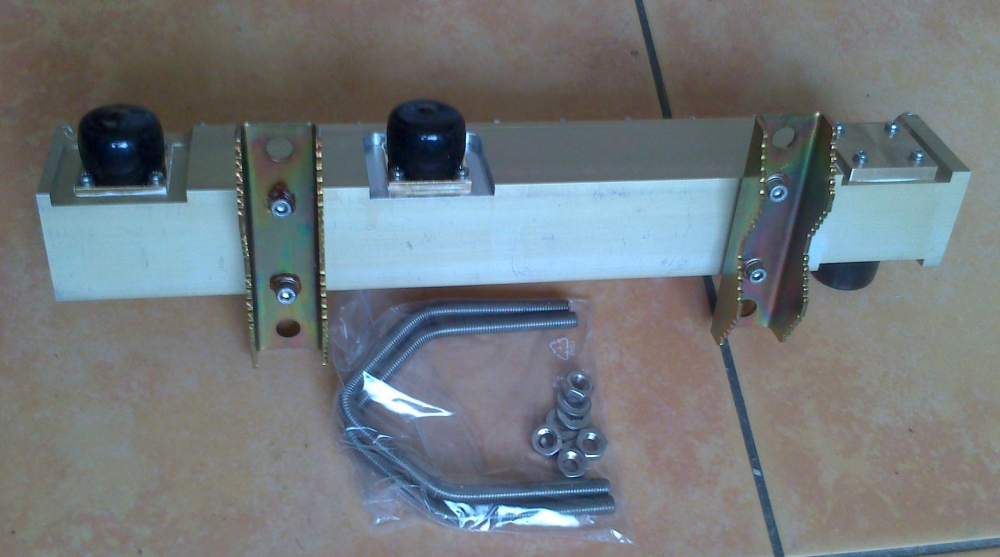

TV power divider

Coaxial splitters up to 30 kW . Basic type 3xDIN 7/16 , 470-860MHz , 2 kW.
Nechte toto pole prázdné

*required field send inquiry

Description

Power divider for connection of UHF  antenna systems.  2-way and multi-way versions . Unequal power division according customer specification . Maximal power according chosen design up to about 40 kW .
Production from 1 pc.



Contact us with your demand that can prepare best quote for you.

Electrical Properties  2 way  and  multi-way
Frequency Band [MHz] 470-860
VSWR  1.1
insertion loss  <0.1 dB
division   -3 dB
maximal average power 2kW
input connector  DIN 7/16
output connector   2xDIN 7/16 for 2- way
center conductor silvered brass
