UF 690.50

• Home
• Antennas
• Antennas-FM 100MHz
• UF 690.50

Nechte toto pole prázdné

*name and surname :

*phone:

*email:

address :

*Your message:

UF_690-50_FMpanel_VerticalDipole...

*required field send inquiry

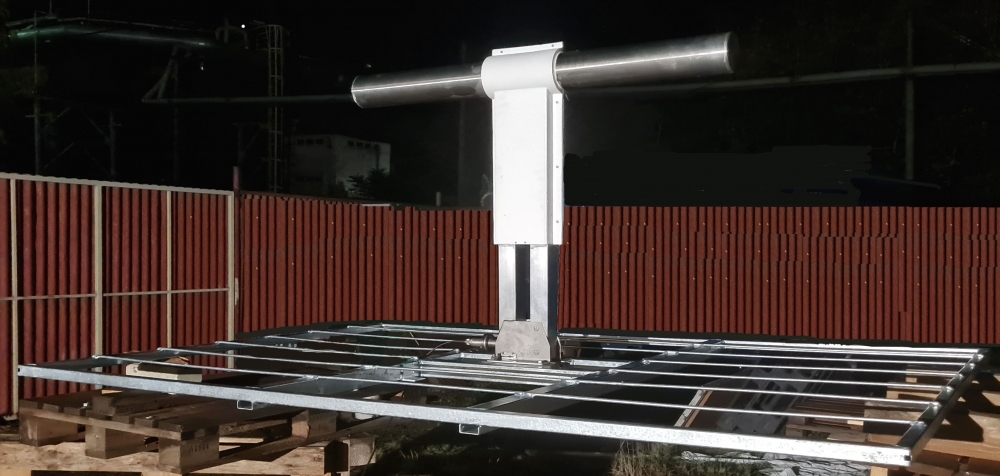

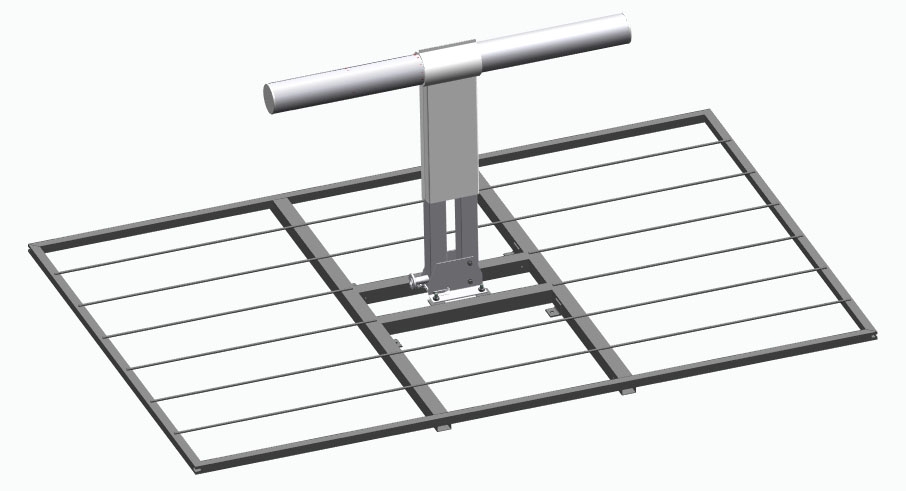

Description

Electrical Properties	UF 690.50
Frequency Band [MHz]	87.05 – 108 MHz

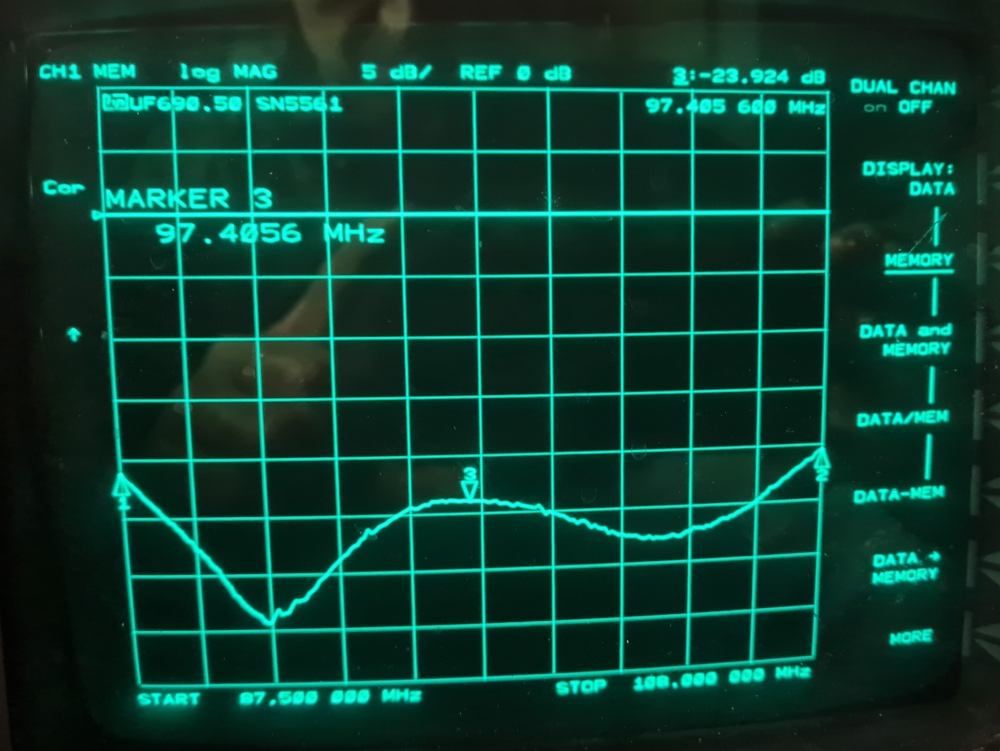

VSWR	<1.15
Gain	6.5 dBi
Impedance	50
Polarization	Vertical
-3dB/-6dB  beam width Hplane	129° / 178°
-3dB/-6dB  beam width Eplane	71° / 98°
Maximal power [kW]	5
Connector	EIA 7/8"

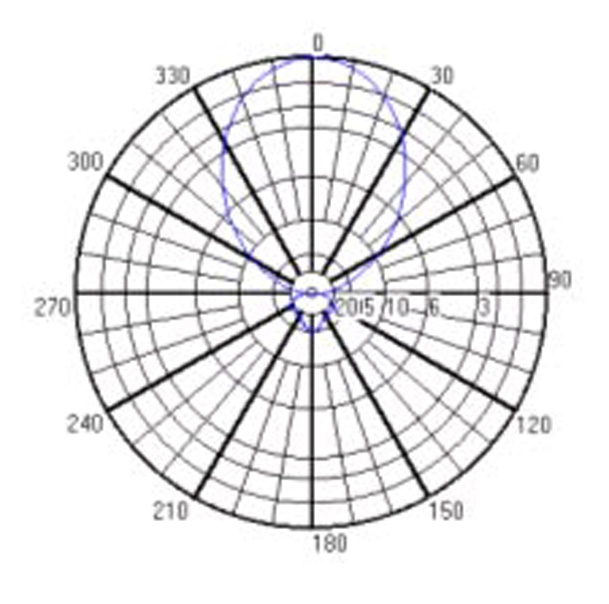

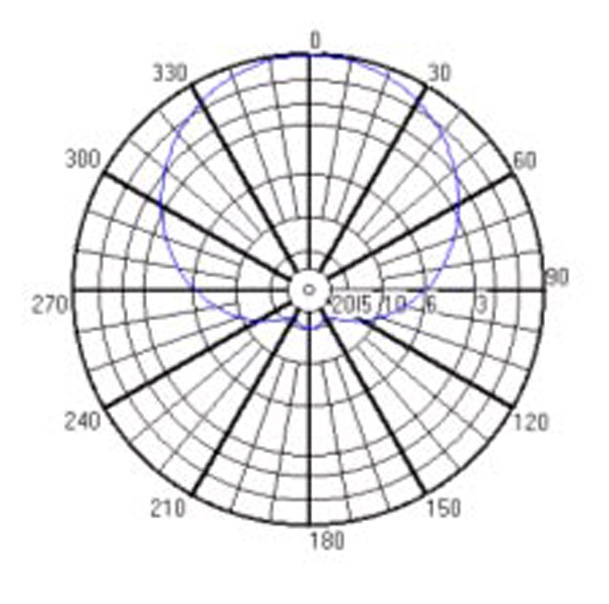

Radiation pattern	Radiation pattern

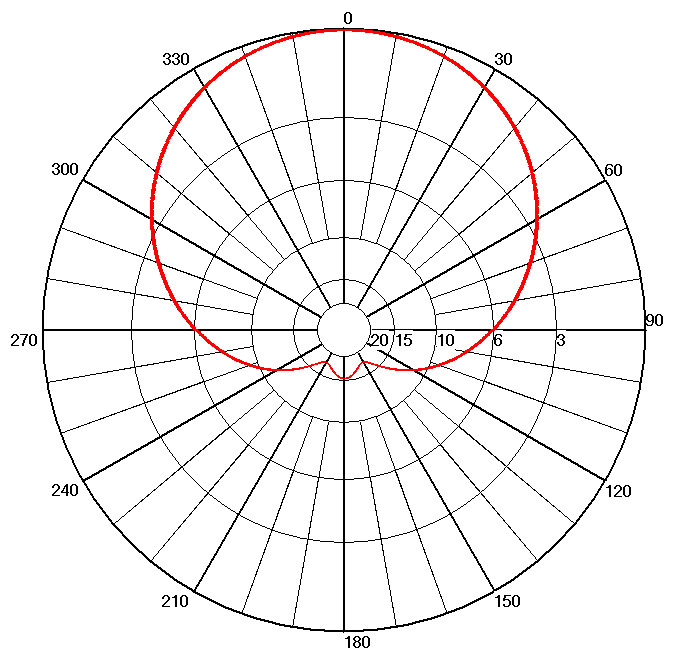

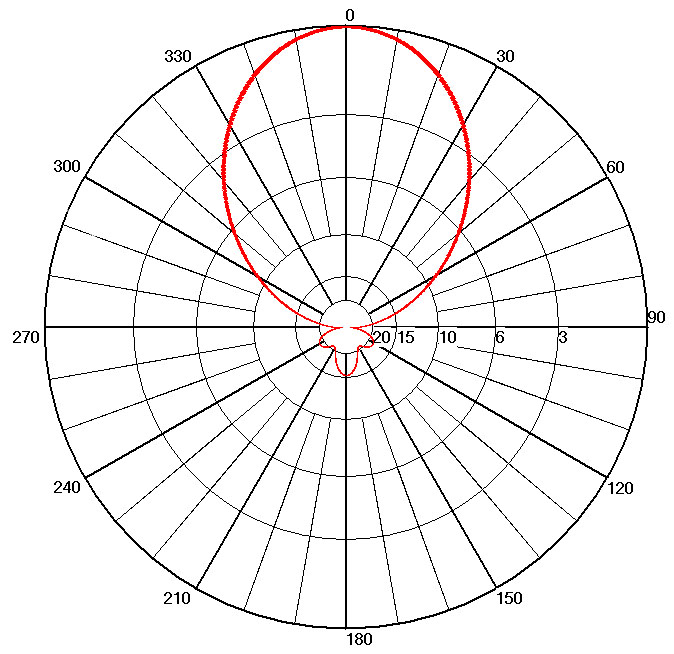

H plane	E plane

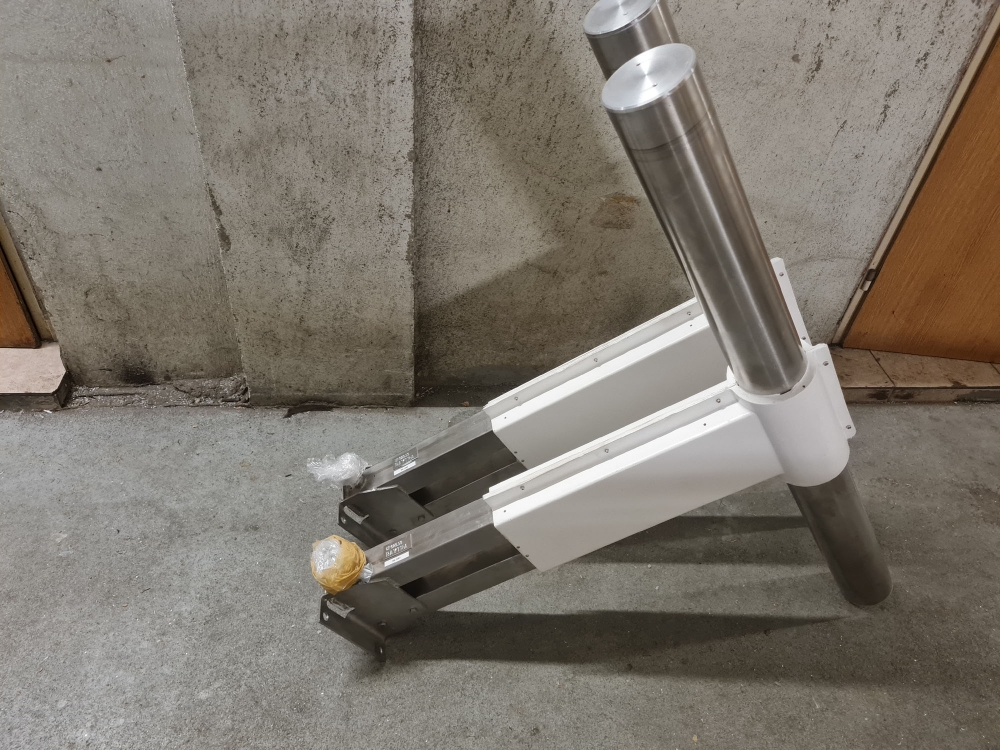

Mechanical Properties
Material of antenna radome	Fibre glass composite
Dipole material	stainless steel
Reflector material	hot dip galvanized steel
height/width [ mm ]	2400 / 1600
Weight radiator/reflector	19/28 kg
Max. wind speed	220 km/h
Winload	0,7 / 0,35 m2
