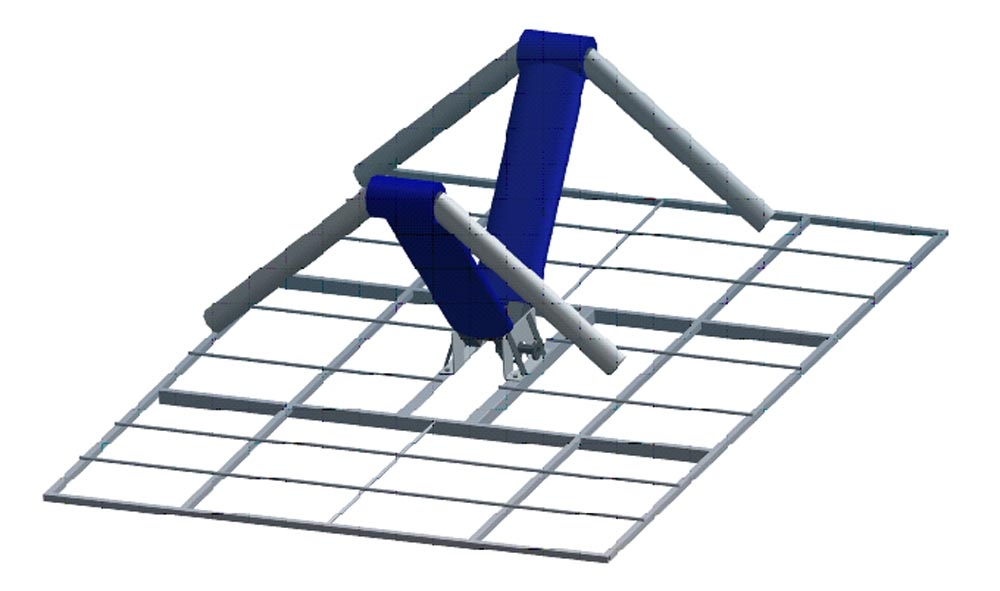

UF693.60

• Home
• Antennas
• Antennas-FM 100MHz
• UF693.60

Nechte toto pole prázdné

*name and surname :

*phone:

*email:

address :

*Your message:



*required field send inquiry

Description

Electrical Properties	UF693.60
Frequency Band  [MHz]	87,5 – 108 MHz
VSWR	<1.15
Gain	9 dBi
Impedance	50
Polarization	Horizontal
-6dB beam width Hplane/Eplane	113° / 80°
Maximal power [kW]	5
Connector	EIA 7/8"

Radiation Pattern	Radiation Pattern
Horizontal diagram	Vertical diagram

Mechanical Properties
Material of antenna radome	Glass-fibre composite
Material of dipole radiator	stainless steel
Material of reflector	hot dip galvanized steel
Height / Width	2480 / 1730
Weight	66 Kg
Winload	0,7 / 0,35 m2
Max. speed of wind	220 km/h
