Description

Electrical Properties	UIP 206.03
Frequency Band [MHz]	840 – 880 MHz
VSWR	1.4 (-15 )
Isolation between connectors	40 dB
Gain	6 dBi
Impedance	50
Polarization	Horizontal/Vertical
-3dB beam width  Eplane /Hplane	60° / 85°
Maximal power [W]	40
Connector	N-f

Radiation pattern	Radiation pattern

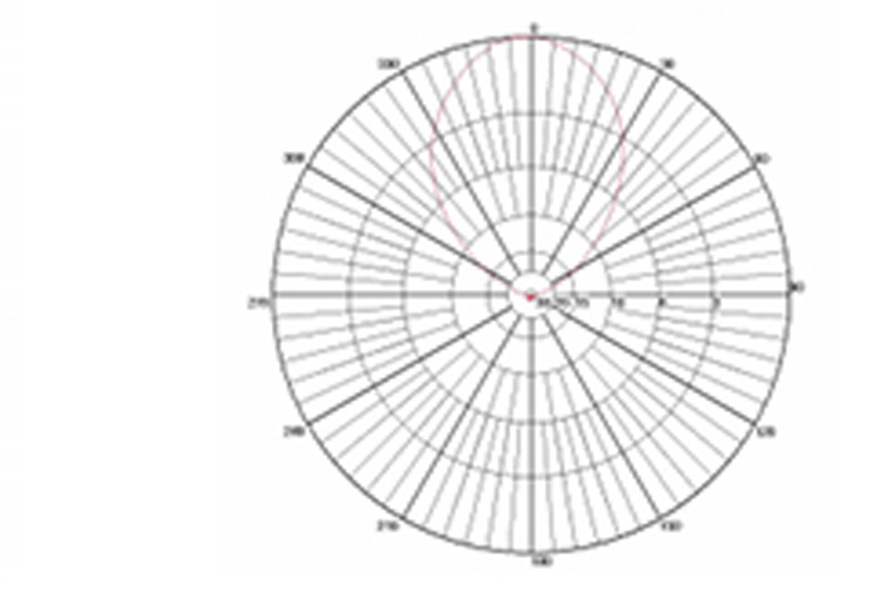

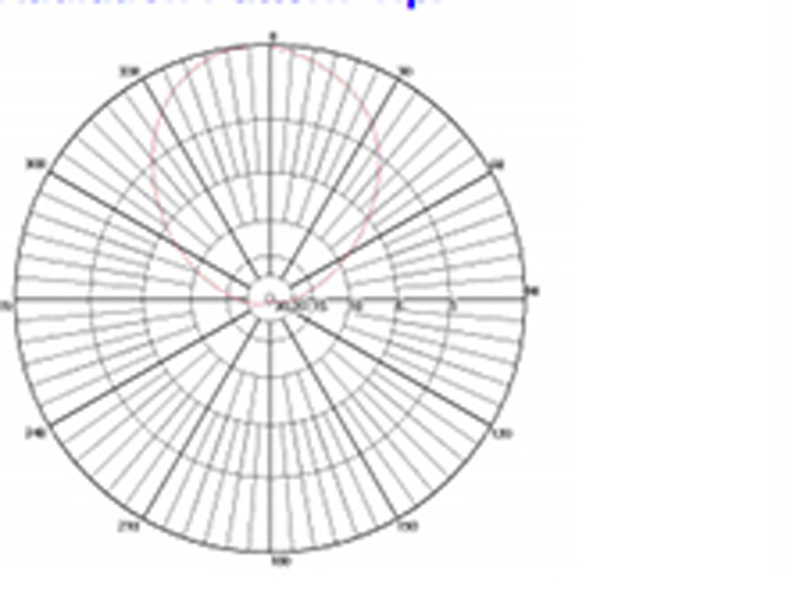

Horizontal pattern	Vertical pattern

Mechanical Properties
Material of antenna radome	ABS-PMMA
Radome color	white - gray on demand
height/width/thickness [ mm ]	163 / 163 / 16
Weight	0.5 kg
Winload	400 N (at 150km/h)
Max. wind speed	200 km/h
Mounting	15-50 mm (20-75 mm)
