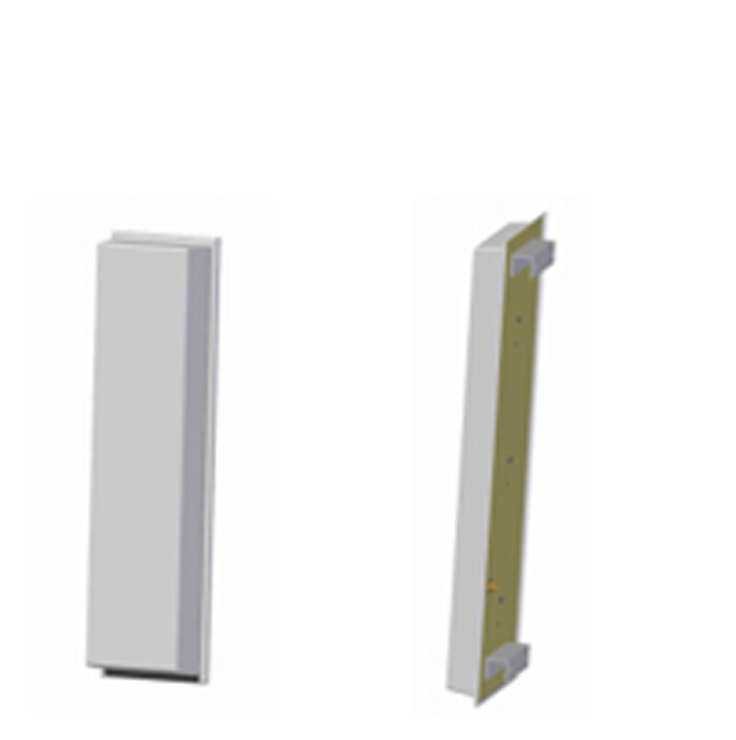

UIP 212.3

12 dBi antenna unit , vertical angle 23°
Nechte toto pole prázdné

*required field send inquiry

Description

Electrical Properties UIP 212.3
frequency band  [MHz] 840 – 880
VSWR 1.4 (-1.5)
gain             [dBi] 12
impedance   [Ω] 50
polarization vertical and horizontal according specification

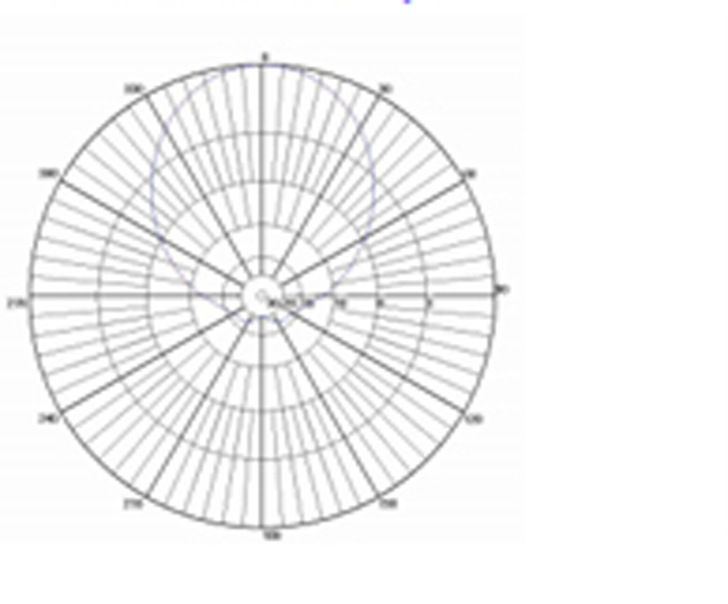

-3dB (-6dB) beam width Vert/Hor diagram 23°(31°) / 85° (122°)
maximal Power [W] 100
connector  N-f



Mechanical Properties
material of antenna radome ABS-PMMA
color  white

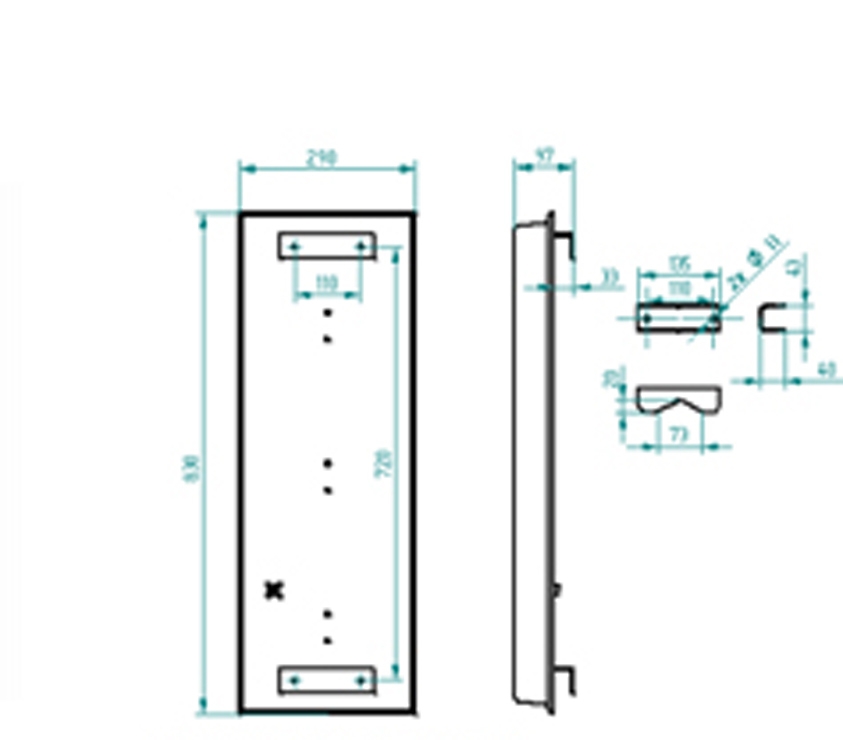

height/width/thickness [ mm ] 830 / 290 / 97
weight 2 kg
max.speed of wind 200 km/h
mounting to the mast 20 - 100 mm
