Description

Electrical Properties	UIP 518.70
Frequency Band [MHz]	5150 – 5850 MHz
VSWR	1.5
Isolation between connectors	40 dB
Gain	18 dBi
Impedance	50
Polarization	MIMO - dual H+V
Vert. unit  -3dB (-6dB) beam width  Eplane /Hplane	9° (13°) / 37° (53°)
Hor. unit  -3dB (-6dB) beam width  Hplane /Eplane	10° (15°) / 35° (51°)
Maximal power [W]	10
Connector	2x Nf

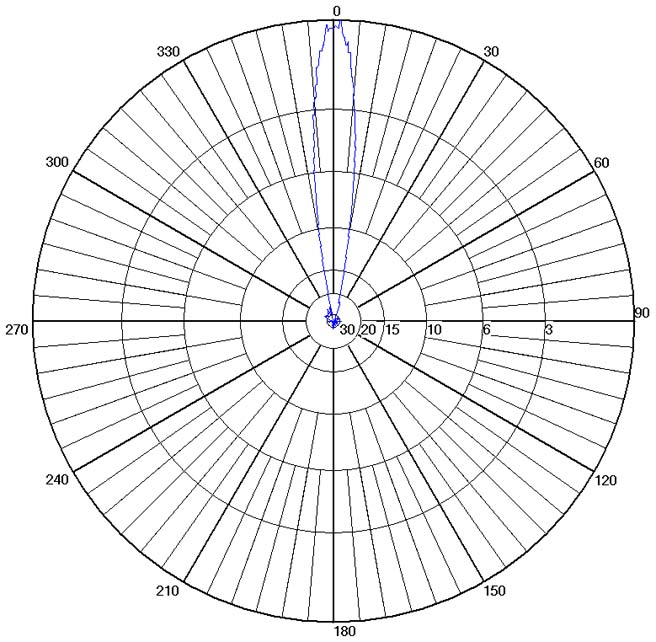

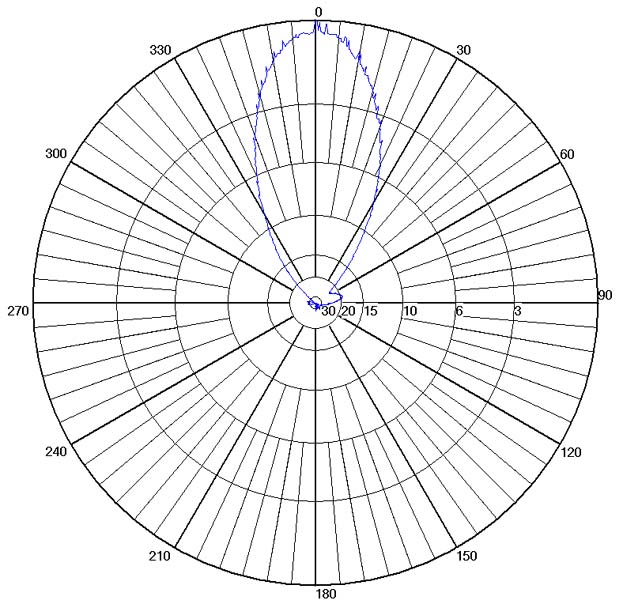

Radiation pattern	Radiation pattern
V unit Eplane 5.7GHz	V unit Hplane 5.7GHz

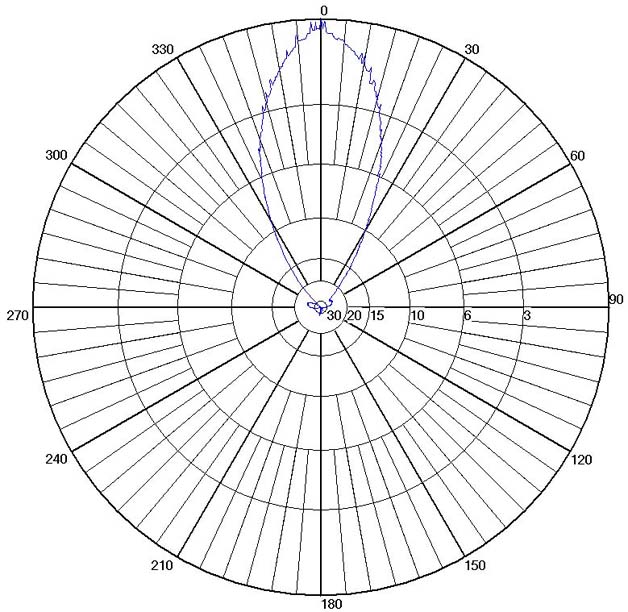

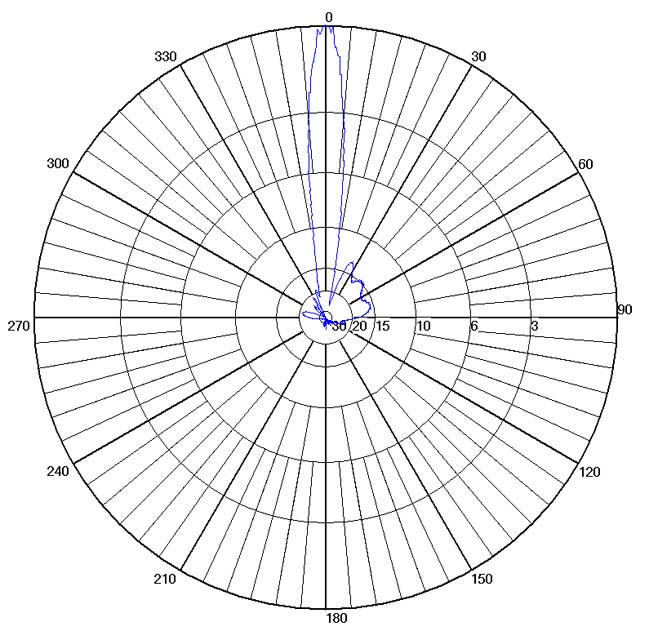

Radiation pattern	Radiation pattern
H unit  Eplane  5.7GHz	H unit  Hplane  5.7GHz

Mechanical Properties
Material of antenna radome	UV stable copolymer ABS-PMMA
Radome color	white
height/width/thickness [ mm ]	357 / 180 / 40
Weight	1.2 kg
Max. wind speed	200 km/h
Mast mounting	20 - 77 mm
Box cover  material	AL alloy

Accesories for Rocket
Connection cables	2x 40cm RF240 Nm-RSMAm
