Description

Electrical Properties	UT 113.50
Frequency Band [MHz]	470–860 MHz ,  tuned to 100MHz band
VSWR	<1.05
Gain	13 dBi
Impedance	50
Polarization	Vertical
-3dB  beam width  Hplane /Eplane	61° / 24°
Maximal power [W]	1200
Connector	7/16"

Radiation pattern	Radiation pattern

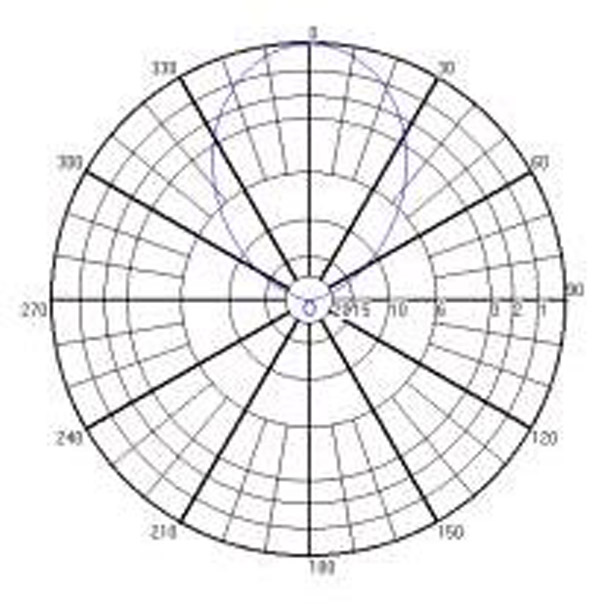

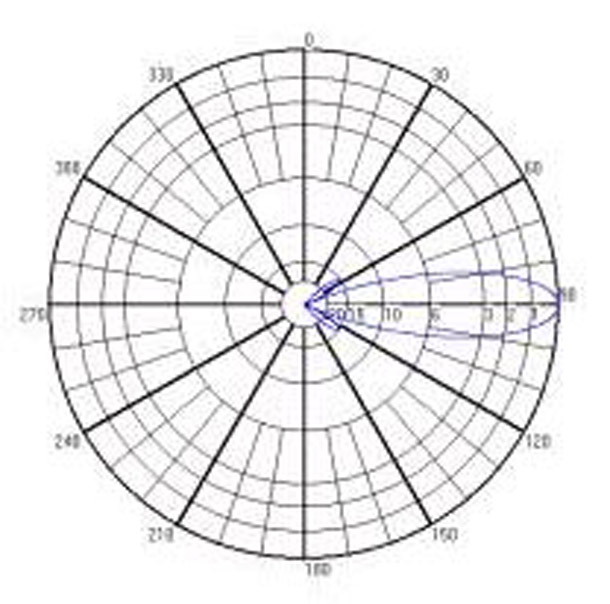

Horizontal pattem	Vertical pattem

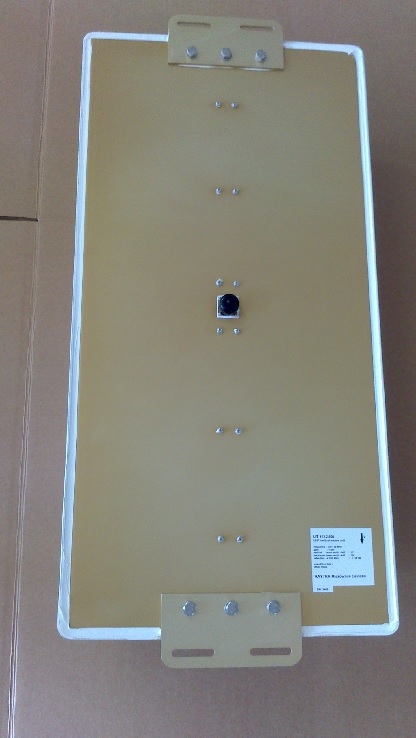

Mechanical Properties

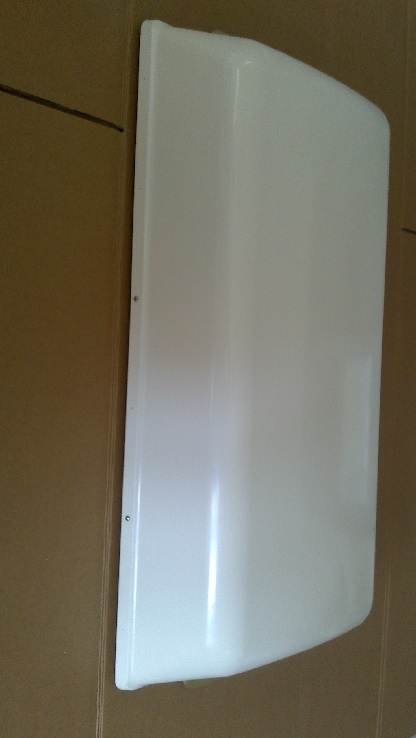

Material of antenna radome	Fibre glass composite
Radome color	white, other on demand
height/width/thickness [ mm ]	1020 / 510 / 40
Weight	6 kg
Max. wind speed	200 km/h
Winload	600N (at 150km/h)
