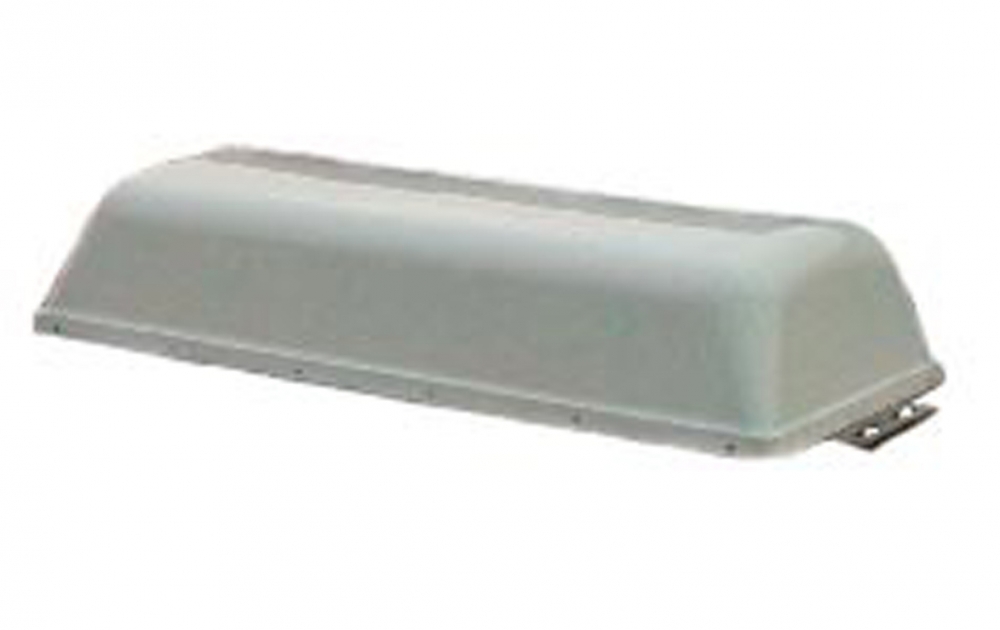

UT 114.60 UHF TV Broadcasting Antenna Unit

Directional panel antenna 90° , gain 14 dBi, horizontal
Nechte toto pole prázdné

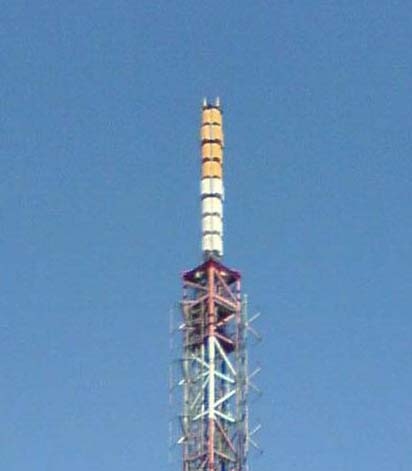

UHF 90° horizontal broadband sector unit . Can be used both for single instalation of small local TV transmitters and for large TV broadcasting systems . Deliver also whole antennas systems with cables power dividers and apropriate phasing to fill demand of vertical diagram. Unit is very robust and tested also in extreme areas with large snow and sea corosive areas.  For mechanical downtilt deliver with special set of clamps from stainless steel.

Electrical Properties UT 114.60
Frequency Band [MHz] 470 – 860 MHz
VSWR <1.05
Gain 13 - 14 dBi
Impedance 50
Polarization Horizontal
-3dB beam width  Eplane /Hplane 61° / 24°
Maximal power [W] 1200

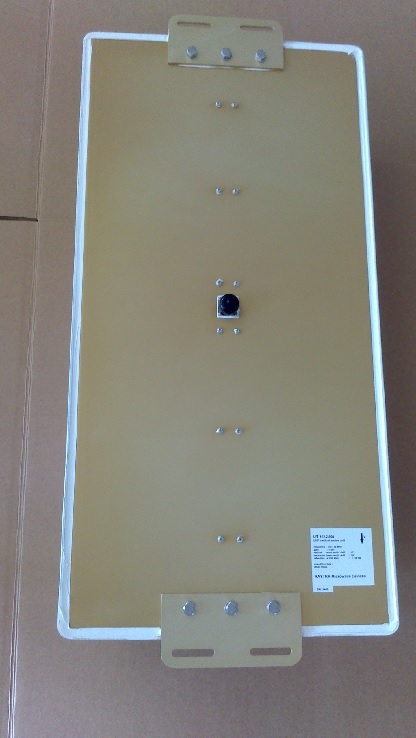

Connector 7/16"

Mechanical Properties

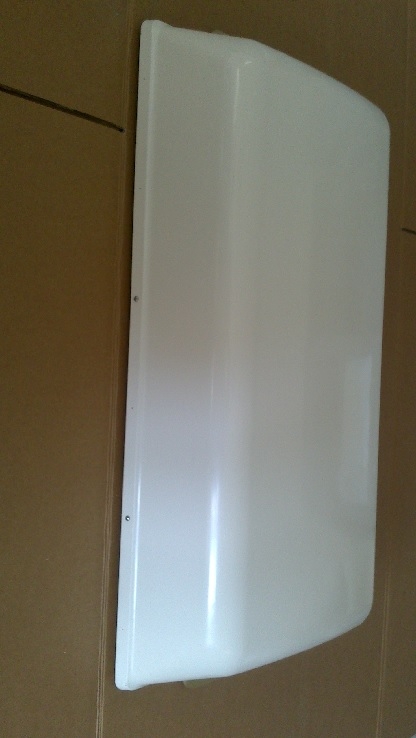

Material of antenna radome Fibre glass composite
Radome color white, other on demand
height/width/ [ mm ] 1020 / 510
Weight 6 kg
Max. wind speed 200 km/h
Winload 600 N (at 150km/h)
