Description

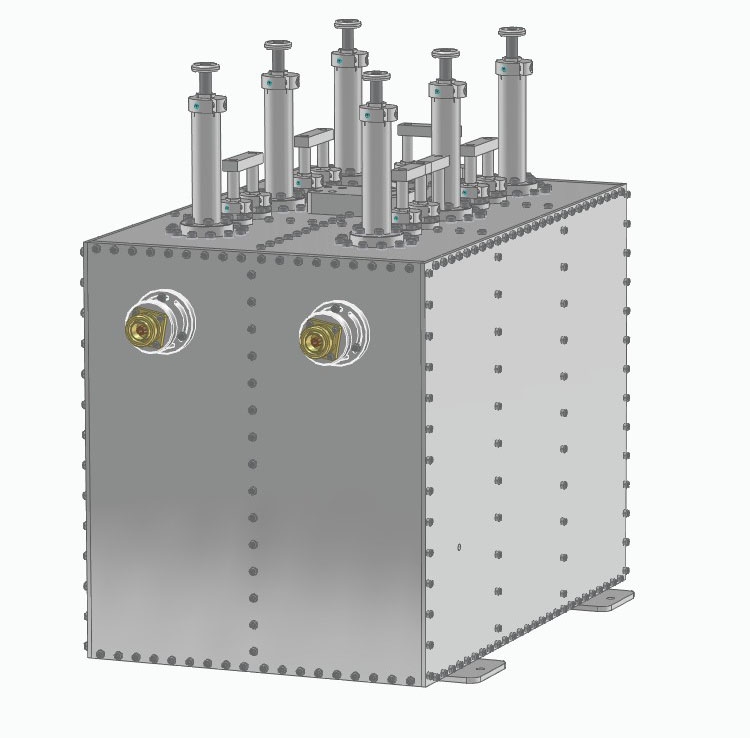

DAB Power Filter RAFDA160-1.3kW
160 mm , 6 cavities
maximal power  1.3kW
input connector  DIN 7/16 , EIA

insertion loss ... 0.8 dB
bandwidth     ... 1.54 MHZ
dimensions    ... 585x400x max 780 mm
weight           ... 44kg
environment temperature  ... -10 to +50°C
