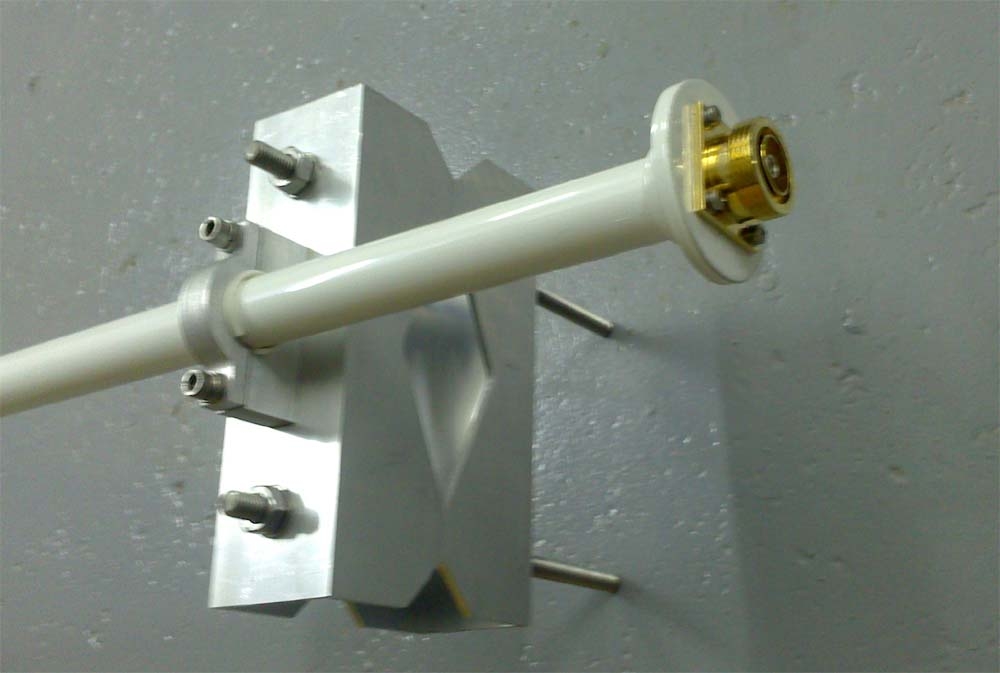

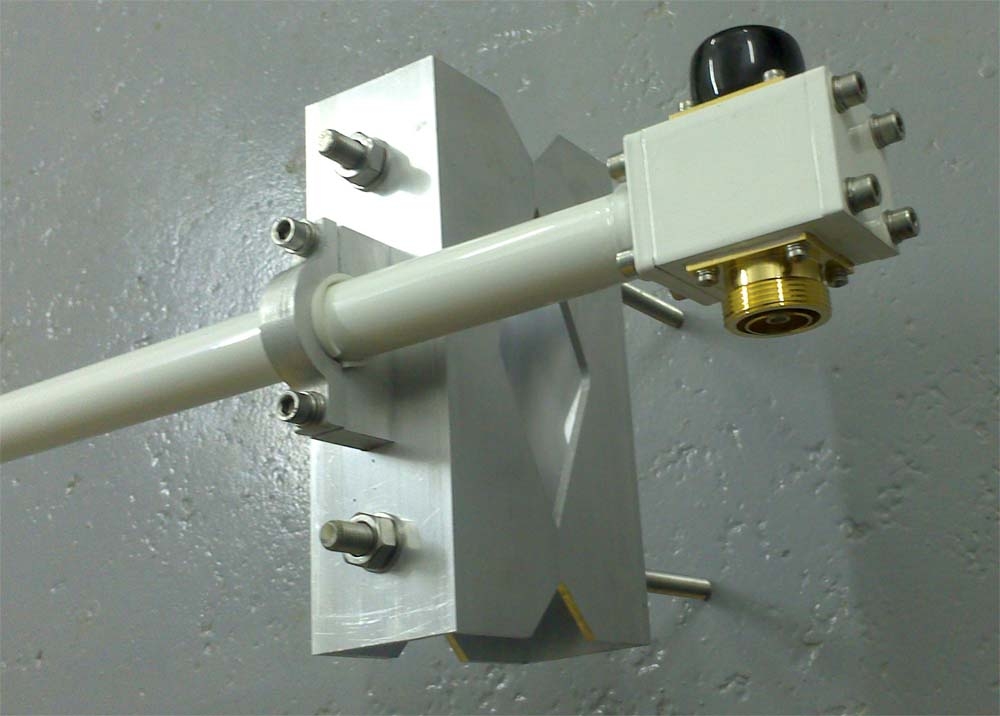

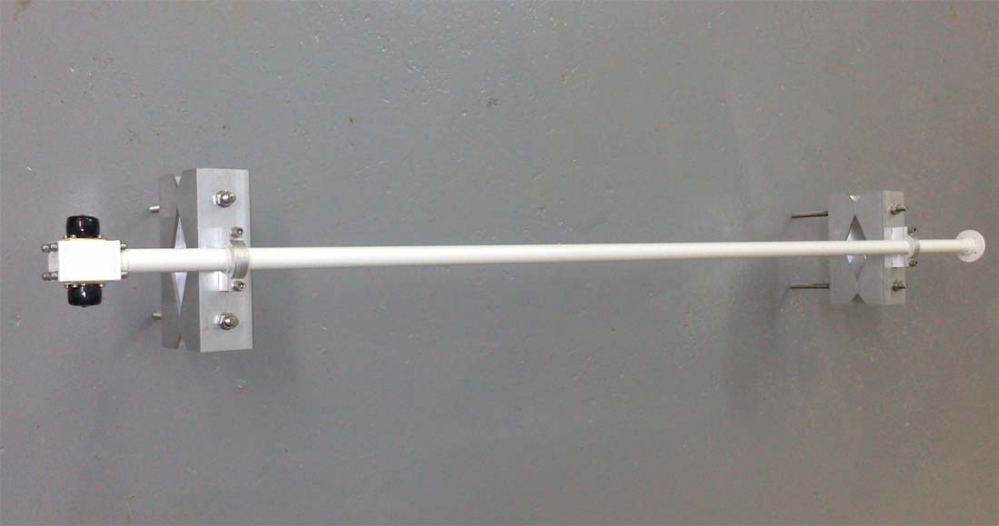

The RAYTRA FM power splitter (antenna divider) is used to combine individual antennas in FM transmitting antenna systems operating in the 87.5–108 MHz band. The coaxial design with silver-plated inner conductors ensures low transmission losses. Excellent impedance matching is standard. Equal power division is provided as standard, while an unequal power division can be supplied on request. Maximum power handling is available up to 50 kW, depending on the design. Manufactured from 1 piece. The divider is available in white or gray.
Basic version: RAPDFM 2.3.3.302.3 / Input DIN 7/16, outputs 2× DIN 7/16, D30 tube, 3 kW power
Designation: ... RAPDFM G.H.I.J.P
RAPDFM ... RAYTRA divider for the 87–108 MHz FM radio band
G ... number of outputs
H ... output connector code
I ... input connector code (SMA ... 1, Nf ... 2, DIN 7/16 ... 3, EIA 7/8 ... 4, EIA 1 5/8 ... 5)
J ... 302 = type with 30 mm tube
P ... power rating according to the connector and divider type
| Electrical Properties | 2-way and multi-way |
| Frequency Band [MHz] | 87-108 |
| VSWR | 1.1 |
| insertion loss | <0.1 dB |
| division | -3 dB |
| maximal average power | 3.5kW |
| input connector | DIN 7/16 |
| output connector | 2xDIN 7/16 for 2-way |
| center conductor | silvered brass |
