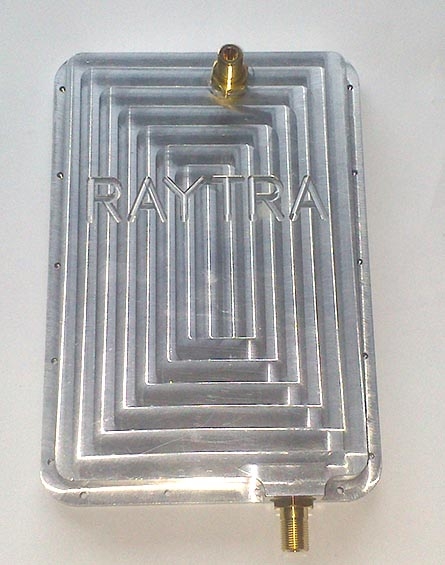

TRX UHF.6.2

UHF band, RFinput:638-656M RFout:560-590M IFinput:12-42MHz , 2W
Nechte toto pole prázdné

Description

Electrical properties                    TRX UHF.6.2
MMDS TRANSCEIVER Downstream
RF Input 638-656 MHz
Gain 27 dB
Gain flatness + - 1.6 dB, full band
Noise figure 4 dB type
Inband spurious -70 dBm

Electrical specification
RF Output 560-590 MHz
IF Output 17-29 MHz
Gain 25 dB
Gain flatness + - 1.5 dB, full band
P1dB output 32 dBm

General
Phase noise -98 dBc/Hz@10kHz
LO leakage at RF/IF ports -50 dBm
LO Frequency stabilty + - 14 kHz (-30°to 60°C)
IF Connector (Rx out/Tx in) F 75 Ω
DC Consumption (12-20 Vdc) 7.5W
Operating temperature
-30°to 60°C
