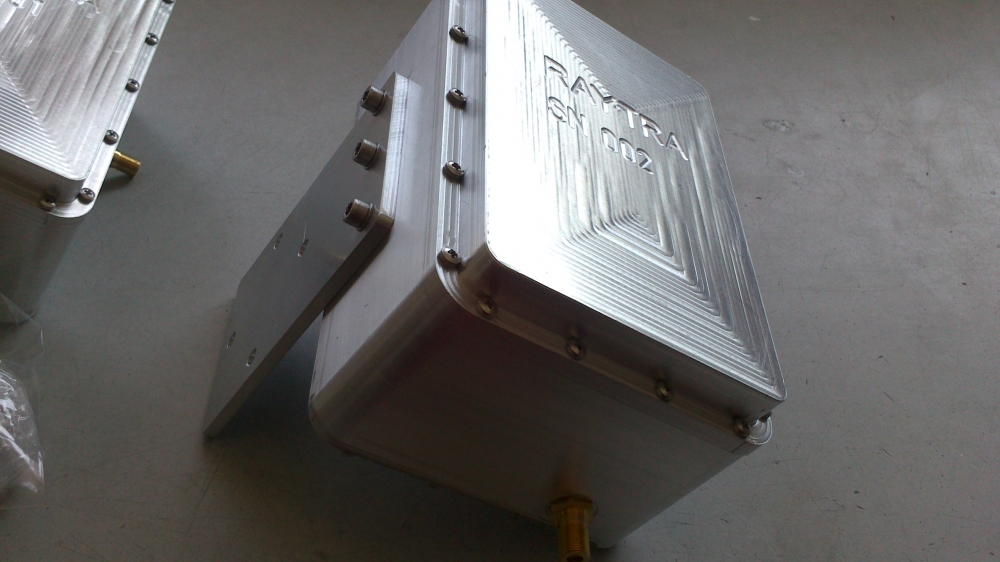

TRX-UHF63 Transceiver - Professional UHF Frequency Down & UP Converter

The TRX-UHF63 is a professional two-way UHF frequency converter designed for demanding RF communication, broadcast and wireless network applications. Originally developed for DOCSIS wireless networks, the converter is also suitable for a wide range of professional RF systems requiring excellent filtering performance and frequency stability.

A key feature of the TRX-UHF63 is its precision-machined 7-pole cavity diplexer filter, individually tuned to provide exceptionally sharp filter characteristics, excellent transmitter/receiver isolation and outstanding rejection of adjacent-channel interference. The diplexer can also be retuned during production to nearby frequency bands within the current design, allowing flexible adaptation to customer requirements.

The converter incorporates a low phase-noise local oscillator, making it suitable for modern digital communication systems using high-order modulation schemes. Customer-specific operating frequencies, local oscillator frequencies and channel bandwidths are available on request.

Typical Applications

DOCSIS wireless broadband networks
Broadcast transmitter and repeater systems
RF signal distribution networks
RF over Fiber systems
UHF communication infrastructure
Remote receiver stations
Spectrum monitoring systems
Telemetry and SCADA radio networks
Digital microwave communication systems
Laboratory and RF measurement equipment
OEM RF communication equipment

Key Features

Professional two-way UHF frequency converter
Precision-machined 7-pole cavity diplexer filter
Exceptionally sharp filter characteristics
Excellent TX/RX isolation
Outstanding adjacent-channel rejection
Low phase-noise local oscillator
Supports high-order digital modulation
Customer-specific operating frequencies
Diplexer retuning available for nearby frequency bands
Rugged industrial construction
Designed and manufactured by RAYTRA Microwave Devices

Electrical properties **TRX UHF.6.3**
MMDS TRANSCEIVER	Downstream
RF Input (DS)	650-668 MHz
Gain RX (DS)	20 dB
Gain flatness	+ - 1.5 dB, full band
Noise figure	4 dB type

Electrical specification	Upstream
RF Output (US)	686-698 MHz
IF input	36-48 MHz
Gain TX (US)	24 dB
Gain flatness	+ - 1.5 dB, full band
Po DVBC 6MHz/MER 36dB	25 dBm

General
Phase noise	-105 dBc/Hz@10kHz
LO leakage at RF/IF ports	-60 dBm
LO Frequency stabilty	+-5 PPM / -20° to +70°C
IF Connector (Rx out/Tx in)	F 75 Ω
DC Consumption (12-20 Vdc)	7.5W
Operating temperature	-40°to 70°C (tested up to +80C)
