Description

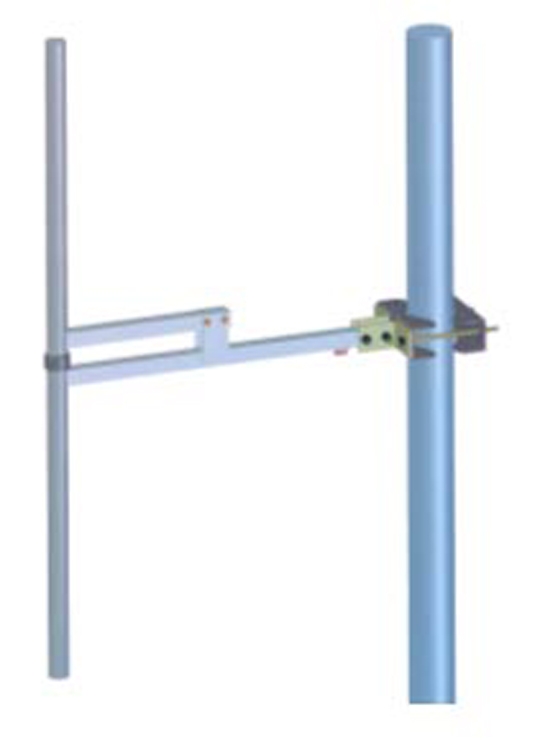

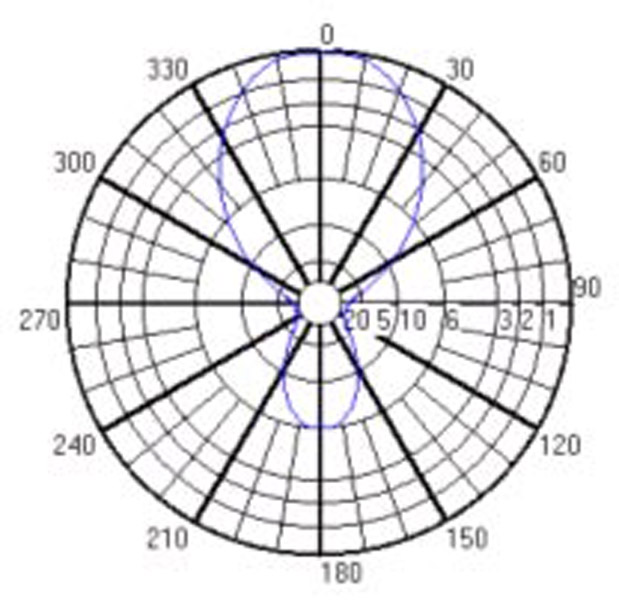

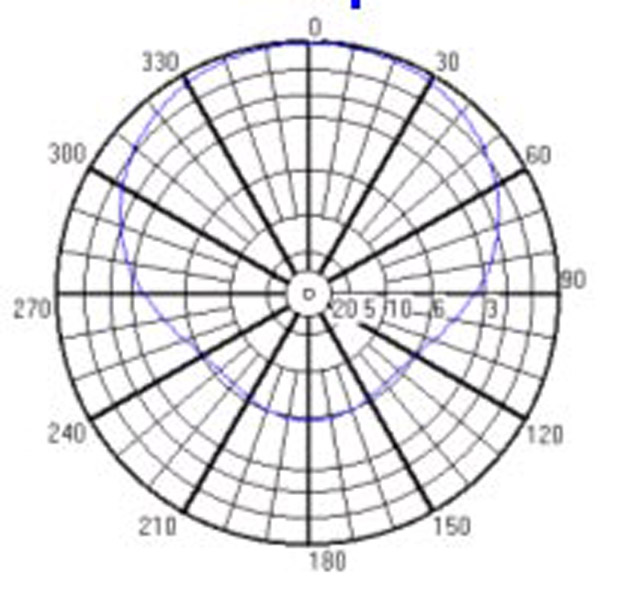

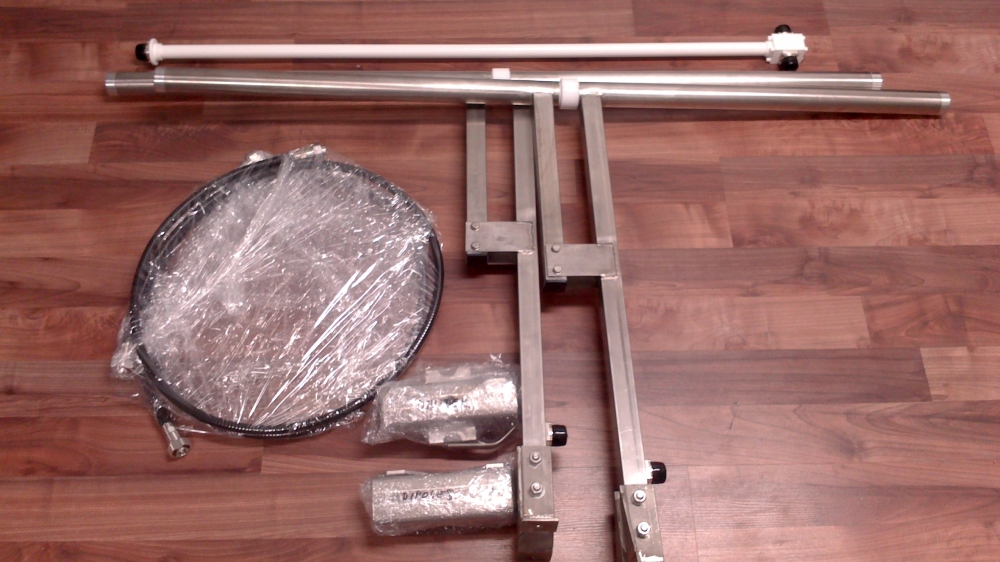

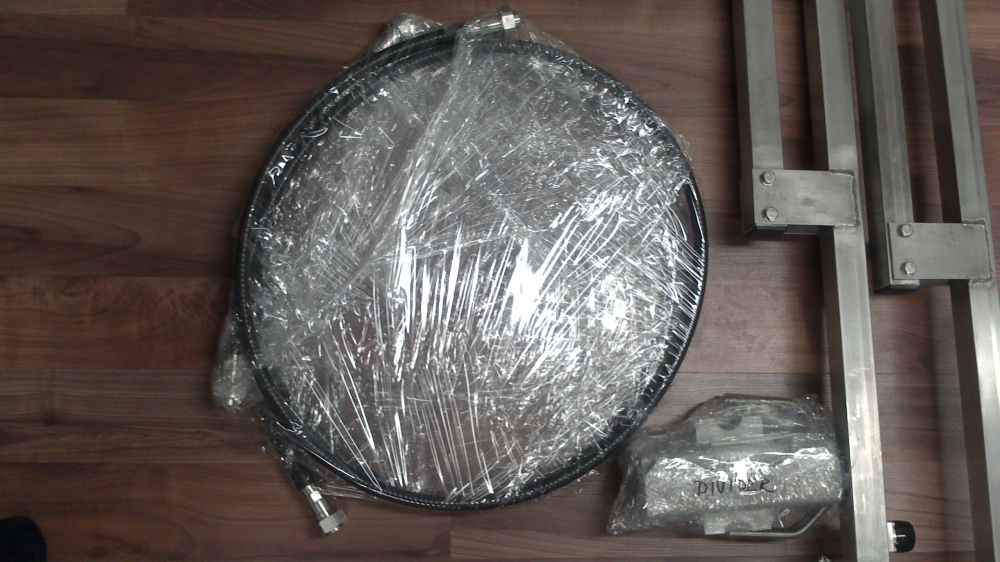

Professional FM dipole antenna UF-64550 for broadcasting systems operating in the 87.5–108 MHz frequency band. The antenna is designed for FM broadcasting, radio transmitters, and professional antenna installations. It is a classic and widely used solution for private radio stations. One to four dipoles can be installed vertically above each other. The installed FM dipole provides a quasi-omnidirectional radiation pattern. The mast behind the antenna slightly reduces radiation in its direction. The antenna can be supplied with optional FM dipoles, FM power dividers, and cables with DIN 7-16 connectors. Prepared is complete antenna set.
| Electrical Properties |
UF 645.50 |
| Frequency Band [MHz] |
87.5 – 108 MHz |
| VSWR |
<1.3 in the channel<1.15 |
| Gain |
4 dBi |
| Impedance |
50 |
| Polarization |
Vertical |
| Maximal power [W] |
2.5 |
| Connector |
7/16" |
| Mechanical Properties |
|
| Dipole material |
stainless steel |
| Reflector material |
hot dip galvanized steel |
| height/width/ [ mm ] |
1400 |
| Weight |
8 kg |
| Max. wind speed |
220 km/h |
| Winload |
0,1 / 0,2 mxm |
