MIMO Sector Antenna for the 2.4 GHz WiFi Band

Proven series of MIMO sector antennas featuring a rugged aluminum enclosure for integrated wireless electronics. Designed for MikroTik RouterBOARDs and Ubiquiti OEM boards without a plastic enclosure. Excellent isolation between horizontal and vertical polarizations ensures efficient MIMO operation and helps achieve high wireless throughput.

Electrical Specifications	UIP 313.71
Frequency Range [MHz]	2400–2500 MHz
VSWR	1.5
Port-to-Port Isolation	40 dB
Gain	14 dBi
Impedance	50 Ω
Polarization	Dual H/V
Maximum Input Power [W]	10
Connector	2 × SMA Female

Mechanical Specifications
Radome Material	UV-stabilized ABS-PMMA copolymer
Radome Color	White
Height / Width / Depth [mm]	357 / 180 / 40
Weight	1.6 kg
Maximum Wind Speed	200 km/h
Pole Mount Diameter	20–77 mm
Integrated Unit Enclosure Material	Aluminum alloy

Accessories
Interconnection Cables	2 × RG316, 120 mm, SMA Male – RP-SMA Male

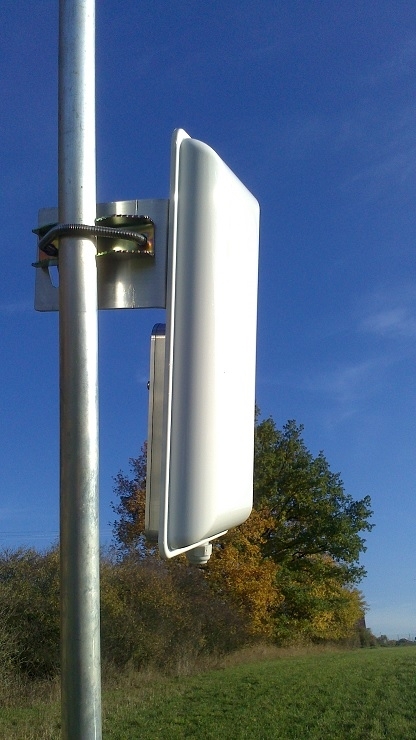

The rugged mechanical design with a UV-resistant radome is engineered for years of maintenance-free operation in demanding outdoor environments. The construction has been proven in thousands of field installations. The antenna is supplied with a pair of RF jumper cables for direct connection to Ubiquiti Rocket wireless units.

Designed and manufactured in the Czech Republic | RAYTRA Microwave Devices
Every antenna is individually tested and measured before shipment.
Long-term availability of spare parts.

```
