Description

UIP515.71 – 70° Sector MIMO Antenna for MikroTik RouterBOARD

The UIP515.71 is a professional 70° sector MIMO antenna designed for MikroTik RouterBOARD RB911, RB912 and older models such as the RB411. It is also compatible with Ubiquiti (UBNT) boards removed from their original plastic enclosures.

The antenna is ideal for wireless ISP base stations where multiple sector antennas are installed on the same mast. Excellent isolation between horizontal and vertical polarizations ensures outstanding MIMO performance, low interference and stable links. For high-capacity or heavily loaded sectors, we recommend the UIP518.71.

Electrical Properties	UIP 515.71
Frequency Band [MHz]	5150 – 5850 MHz
VSWR	1.5
Gain	15-16 dBi
Impedance	50
Polarization	MIMO - H/V dual
Vert. unit  -3dB (-6dB) beam width  Eplane /Hplane	13° (17°) / 77° (106°)
Hor. unit  -3dB (-6dB) beam width  Hplane /Eplane	12° (18°) / 62° (84°)
Maximal power [W]	10
Connector	2xSMA-f

Radiation pattern	Radiation pattern
V unit Vert. 5.6GHz	V unit Hor. 5.6GHz
Radiation pattern	Radiation pattern
H unit Vert. 5.6GHz	H unit Hor. 5.6GHz

Mechanical Properties

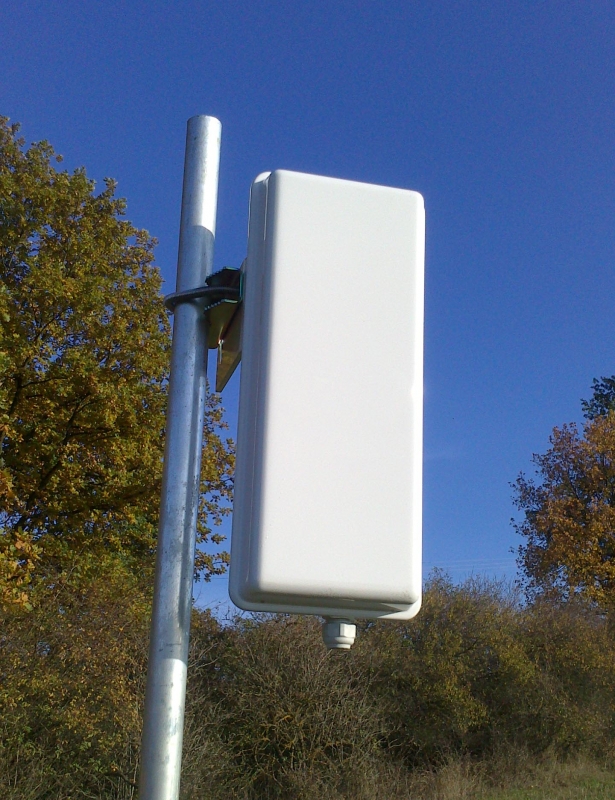

Material of antenna radome	UV stable copolymer ABS-PMMA
Radome color	white
height/width/thickness [ mm ]	355 / 150 / 30
Weight	1.8 kg
Max. wind speed	200 km/h

Key Features

• 70° sector antenna for 5 GHz wireless networks
• Designed for MikroTik RB911, RB912 and RB411 RouterBOARDs
• possibility to use OEM UBNT boards
• Excellent isolation between horizontal and vertical polarizations
• Low VSWR across the operating band
• Optimized radiation pattern for professional PtMP networks

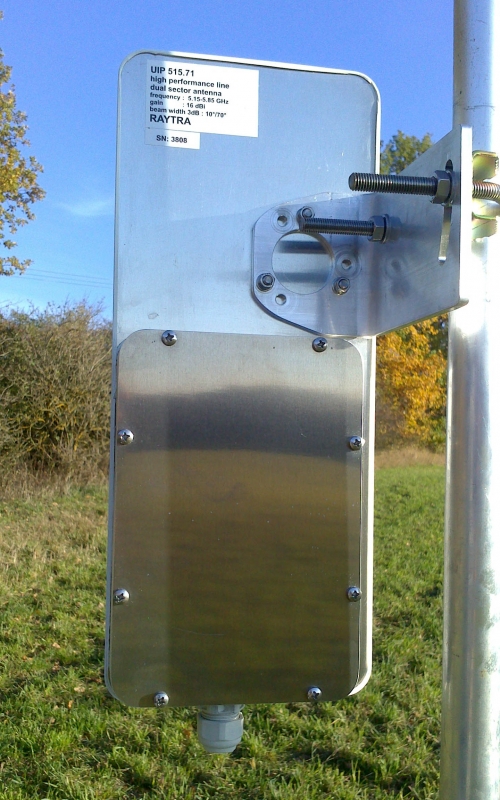

• Robust Aluminium enclosure
• Excellent RF shielding of the electronic board
• Reliable protection against water ingress and harsh outdoor environments
• Quality-controlled manufacturing for consistent electrical performance

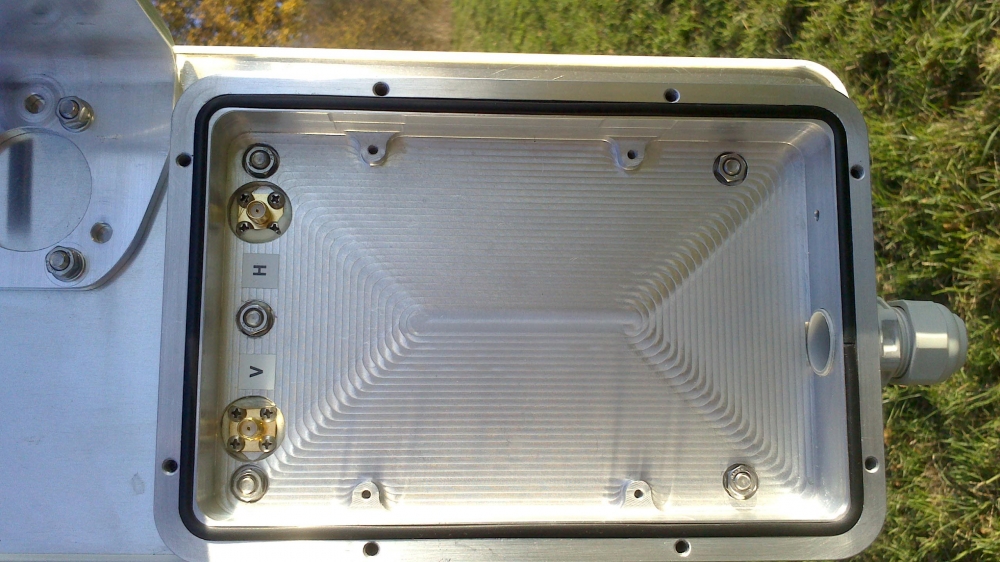

The rugged aluminum enclosure provides both excellent electromagnetic shielding and long-term mechanical durability. The antenna has been proven in thousands of installations and is widely used by professional wireless Internet service providers (WISPs), delivering years of reliable, maintenance-free operation.

The current production version features an increased-height enclosure lid, providing additional space for the latest generations of MikroTik RouterBOARDs and newer electronic assemblies.
