Name: UIP114.10
Brand: RAYTRA
Price: 3150 CZK
Availability: InStock

*name and surname :

*phone:

*email:

address :

*Your message:

*required field send inquiry

Description

The antenna is manufactured with great attention to detail and high mechanical precision. Traditionally, its primary application was Studio-to-Transmitter Link (STL) communication, providing reliable point-to-point radio links between broadcasting studios and FM transmitter sites. Today, its range of applications has expanded significantly to cover numerous professional wireless and satellite communication systems.

The antenna is supplied as standard with an N-female connector. It can also be supplied with a RAYTRA aluminium enclosure or prepared with pressed mounting studs for installation of the customer's own enclosure. In this configuration, an SMA connector is typically used.

Typical applications include:

Studio-to-Transmitter Links (STL) – reliable transmission of audio and data signals from broadcasting studios to FM radio transmitter sites. Unlike internet-based solutions, dedicated radio links provide excellent operational stability and independence from Internet Service Providers.
Meteorological satellites – reception of LRIT/HRIT weather data broadcasts and telemetry from geostationary meteorological satellites such as Meteosat, GOES, and similar systems. Around 1691 MHz, this band is used for the distribution of meteorological imagery, telemetry, and weather data for meteorological stations.
Satellite telemetry – transmission and reception of operational data, diagnostics, and satellite control information.
Satellite Internet of Things (Satellite IoT) – communication with remote sensors, monitoring devices, and data acquisition systems via satellite networks. These technologies are widely used in energy, agriculture, transportation, and critical infrastructure monitoring.
SCADA and industrial telemetry – collection of operational data from remote locations where terrestrial communication networks are unavailable or unreliable. Satellite communication enables monitoring and control of industrial facilities, water management systems, oil and gas pipelines, and electrical power distribution networks.
Research and university applications – reception of experimental satellite transmissions and development of L-band communication systems for research and educational purposes.

Electrical Properties	UIP 114.10
Frequency Band [MHz]	1680 – 1720 MHz
VSWR	1.3
Gain	14.5 dBi
Impedance	50
Polarization	Vertical/Horizontal
Vert. unit -3dB beam width Eplane /Hplane	31° / 41°
Maximal power [W]	30
Connector	Nf

Mechanical Properties

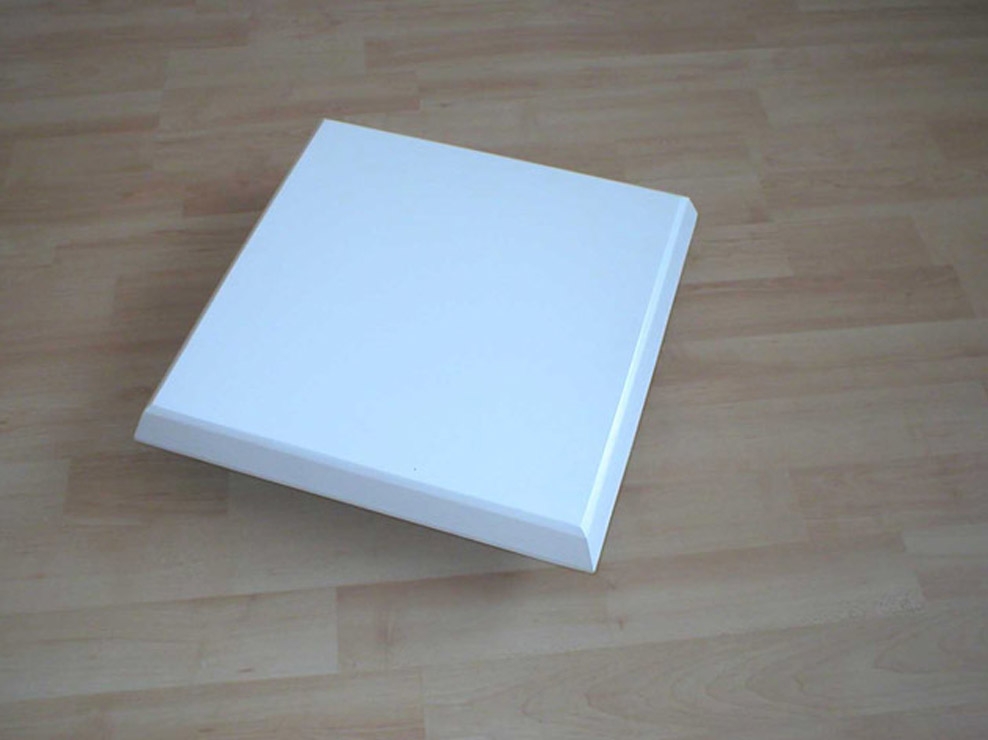

Material of antenna radome	ABS - PMMA
Radome color	white
height/width/thickness [ mm ]	340 / 340 / 34
Weight	0.8 kg
Max. wind speed	200 km/h

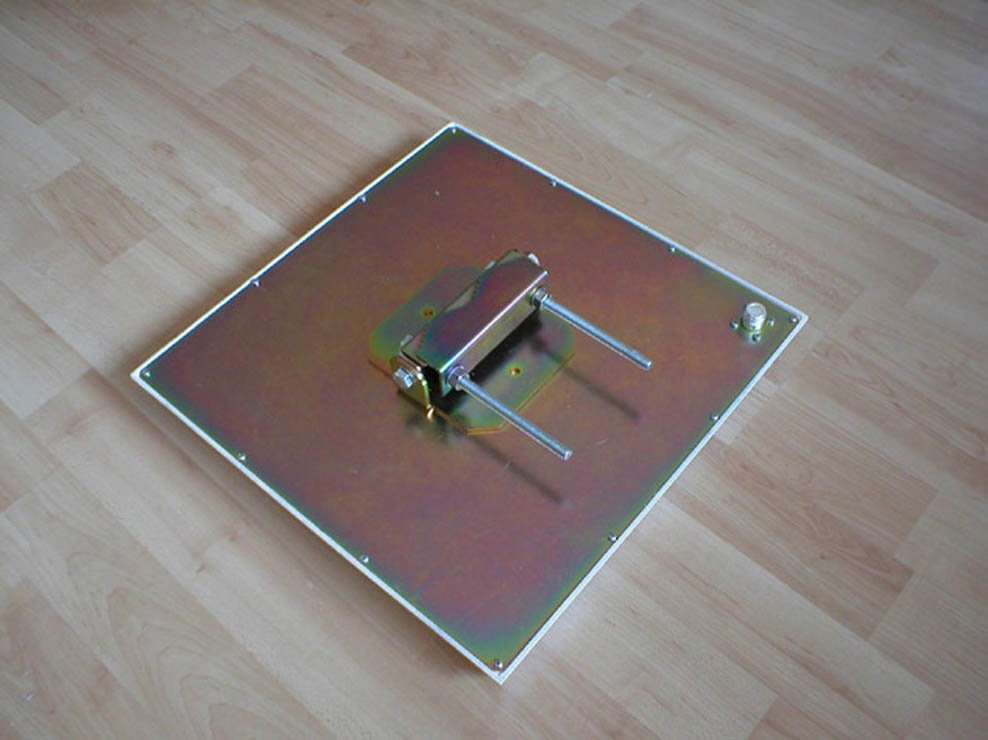

Mast mounting	20 - 75 mm

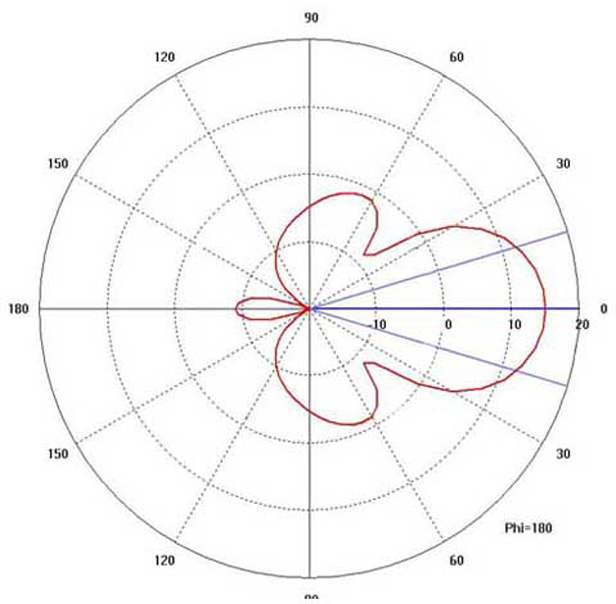

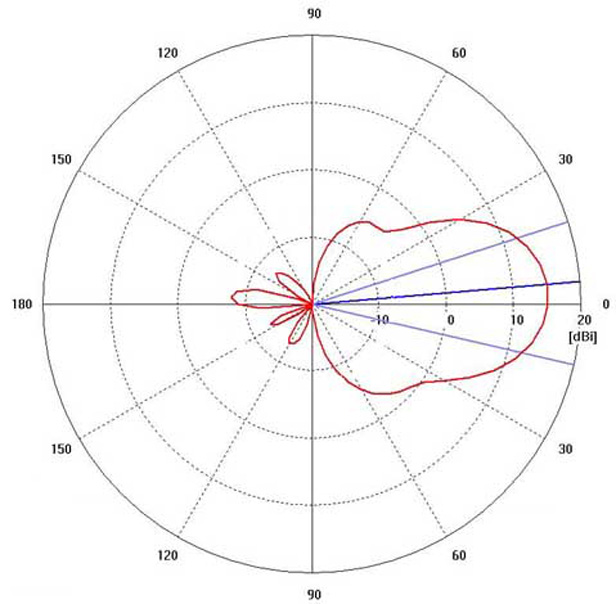

Radiation pattern	Radiation pattern
Hplane 1700MHz	Eplane 1700MHz
