UIP515.72 Sector MIMO Antenna for Ubiquiti Rocket Prism 5AC and Rocket AC

This high-performance sector MIMO antenna is designed for use with Ubiquiti Rocket Prism 5AC and Rocket AC radio units. Excellent isolation between the horizontal and vertical polarizations ensures efficient MIMO operation, helping to achieve higher throughput and improved link performance.

The radiation patterns are optimized for low sidelobe levels in both the horizontal and vertical planes, while the antenna's high front-to-back ratio minimizes interference from unwanted directions. These characteristics make it ideal for multi-sector base station installations where several antennas are mounted on the same mast.

Electrical Properties	UIP 515.72
Frequency Band [MHz]	5150 – 5850 MHz
VSWR	1.5
Gain	15-16 dBi
Impedance	50
Polarization	MIMO - H/V dual
Vert. unit -3dB (-6dB) beam width Eplane /Hplane	13° (17°) / 77° (106°)
Hor. unit -3dB (-6dB) beam width Hplane /Eplane	12° (18°) / 62° (84°)
Maximal power [W]	10
Connector	2xSMA-f

Mechanical Properties
Material of antenna radome	UV stable copolymer ABS-PMMA
Radome color	white
height/width/thickness [ mm ]	355 / 150 / 30
Weight	1 kg
Max. wind speed	200 km/h

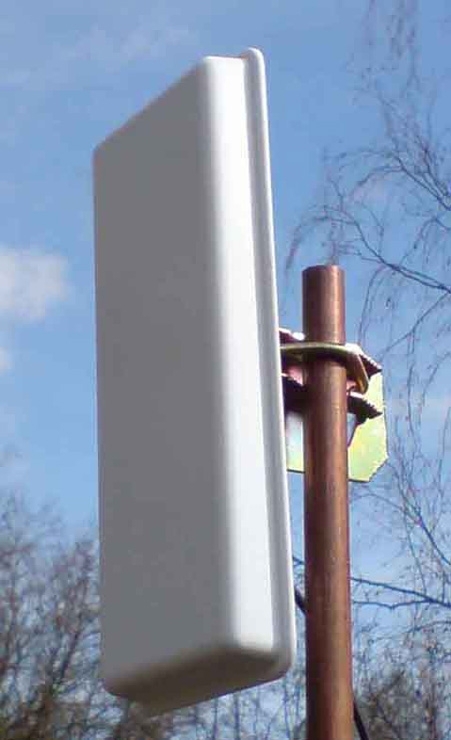

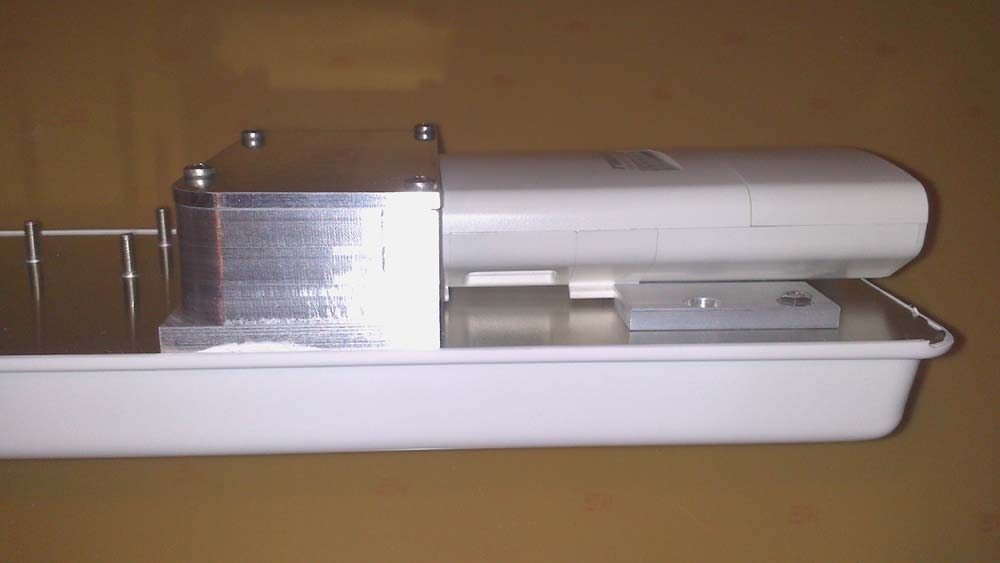

The antenna features a robust mechanical design with a UV-resistant radome, ensuring reliable long-term operation in demanding outdoor environments. Its design has been proven in thousands of field installations over many years of service.

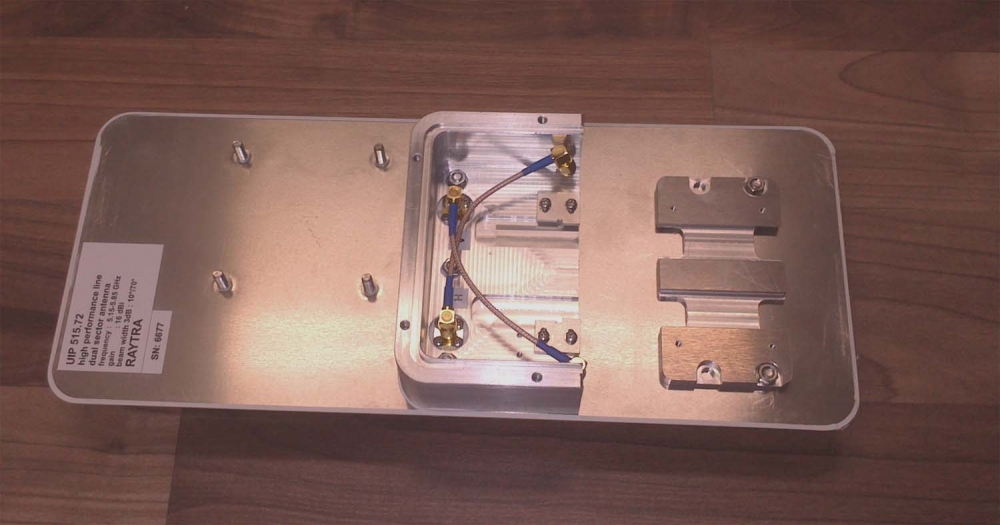

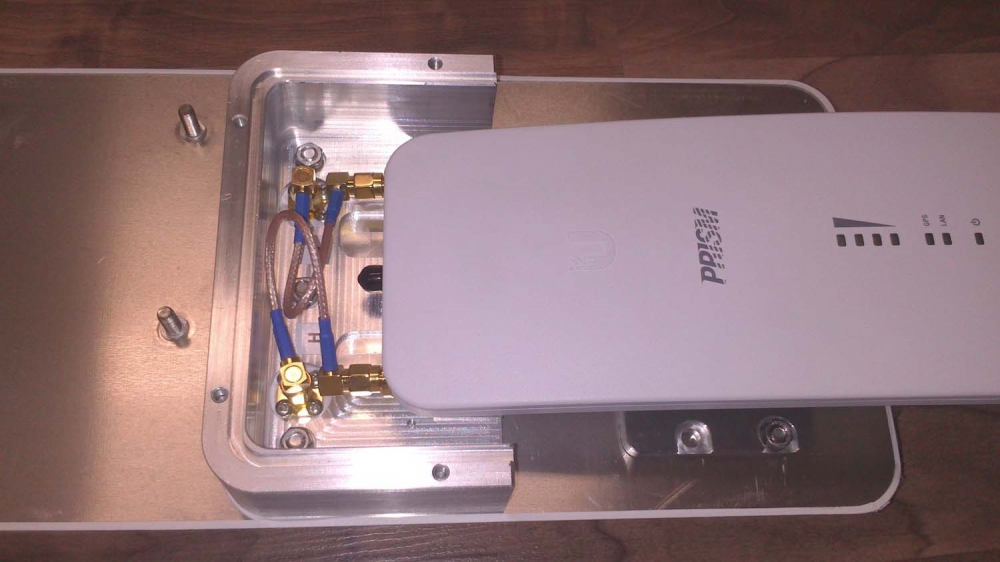

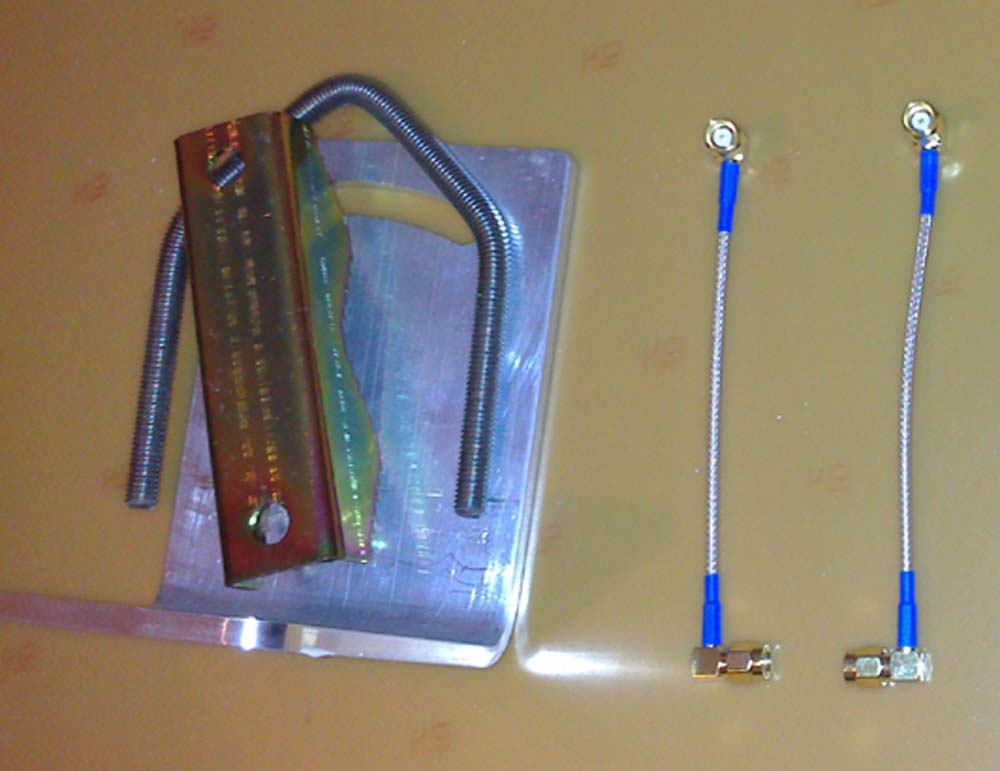

The antenna is supplied with a pair of RF jumper cables for direct connection to Ubiquiti Rocket radio units.

Developed and manufactured in the Czech Republic | RAYTRA Microwave Devices
Every antenna is individually tested and measured.
Long-term availability of spare parts


Radiation pattern	Radiation pattern
V unit Vert. 5.6GHz	V unit Hor. 5.6GHz

Radiation pattern	Radiation pattern
H unit Vert. 5.6GHz	H unit Hor. 5.6GHz
