Description

UIP518.72 Sector MIMO Antenna for Ubiquiti Rocket Prism 5AC and Rocket AC

This high-performance sector MIMO antenna is designed for use with Ubiquiti Rocket Prism 5AC and Rocket AC radio units. Excellent isolation between the horizontal and vertical polarizations ensures efficient MIMO operation, helping to achieve higher throughput and improved link performance.

The radiation patterns are optimized for low sidelobe levels in both the horizontal and vertical planes, while the antenna's high front-to-back ratio minimizes interference from unwanted directions. These characteristics make it ideal for multi-sector base station installations where several antennas are mounted on the same mast.

Electrical Properties	UIP 518.72 -ROCKET
Frequency Band [MHz]	5150 – 5850 MHz
VSWR	1.5
Isolation between connectors	40 dB
Gain	18 dBi
Impedance	50
Polarization	MIMO - dual H+V
Vert. unit -3dB (-6dB) beam width Eplane /Hplane	9° (13°) / 37° (53°)
Hor. unit -3dB (-6dB) beam width Hplane /Eplane	10° (15°) / 35° (51°)
Maximal power [W]	10
Connector	2x SMA-f

Mechanical Properties
Material of antenna radome	UV stable copolymer ABS-PMMA
Radome color	white
height/width/thickness [ mm ]	357 / 180 / 40
Weight	1.6 kg
Max. wind speed	200 km/h
Mast mounting	20 - 77 mm
Box cover material	AL alloy

Accesories

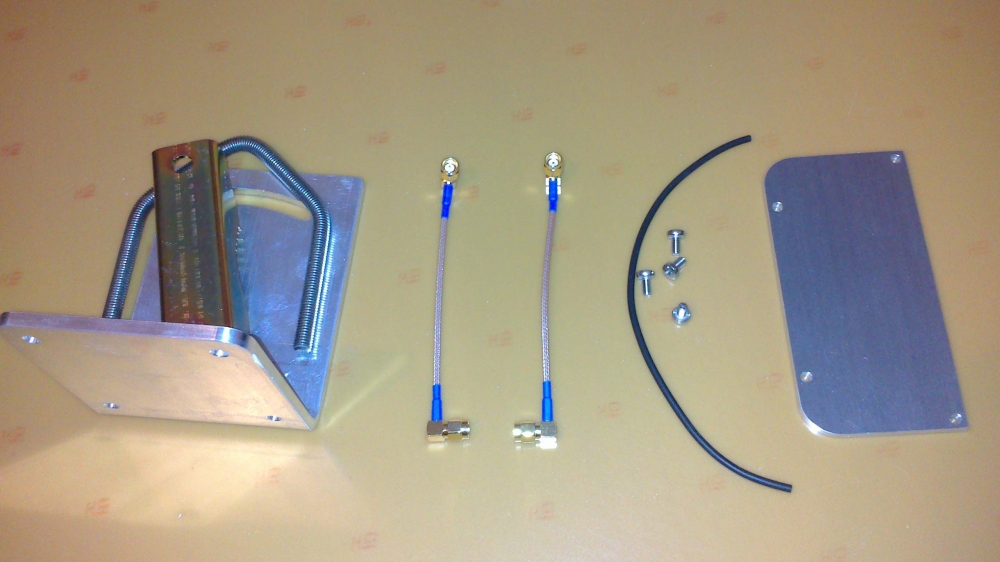

Connection cables	2xRG316 120mm SMAm-RSMA

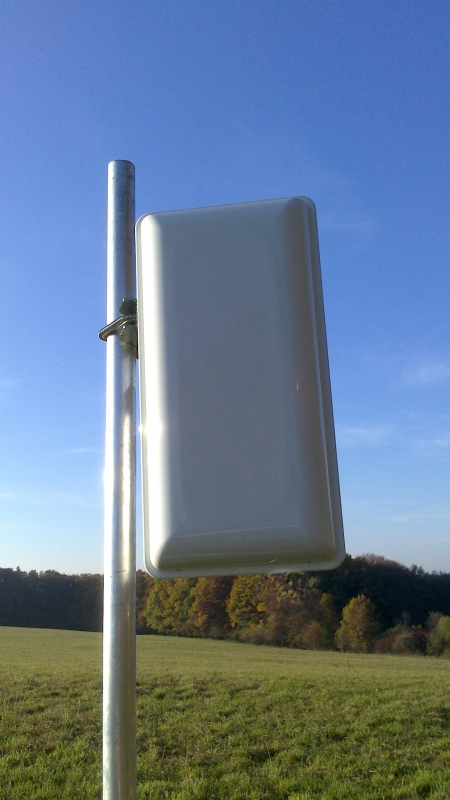

The antenna features a robust mechanical design with a UV-resistant radome, ensuring reliable long-term operation in demanding outdoor environments. Its design has been proven in thousands of field installations over many years of service.

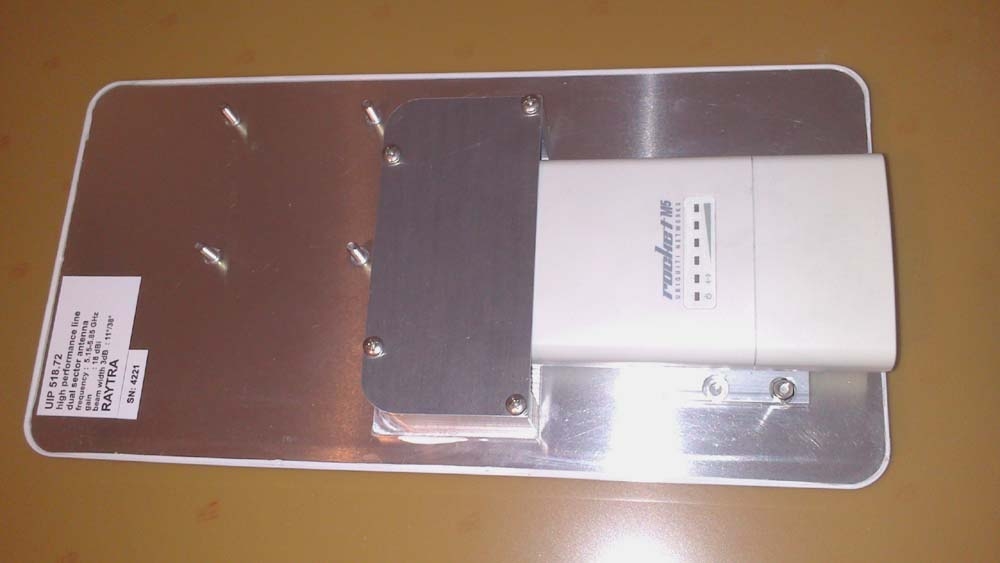

The antenna is supplied with a pair of RF jumper cables for direct connection to Ubiquiti Rocket radio units.

Developed and manufactured in the Czech Republic | RAYTRA Microwave Devices
Every antenna is individually tested and measured.
Long-term availability of spare parts


Radiation pattern	Radiation pattern
V unit Eplane 5.7GHz	V unit Hplane 5.7GHz

Radiation pattern	Radiation pattern
H unit Eplane 5.7GHz	H unit Hplane 5.7GHz
