Description

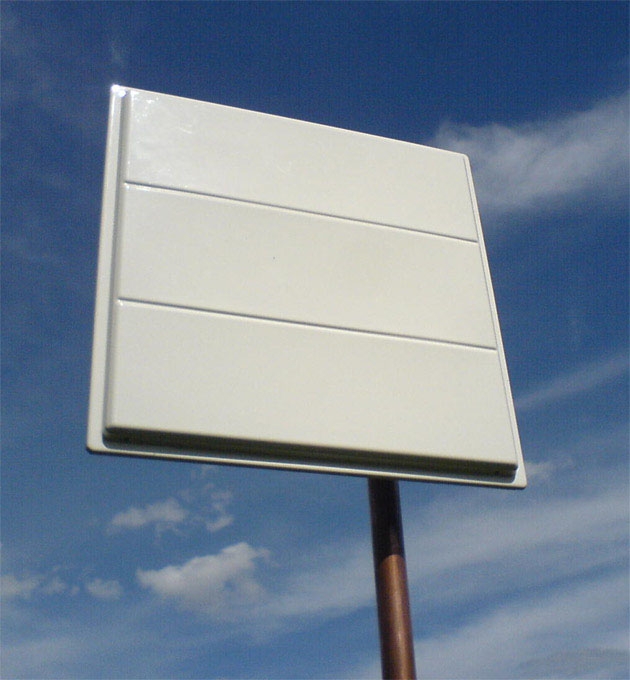

UIP522.51 Directional 5 GHz Planar Antenna

Client antenna designed for operation in the 5 GHz band. Its proven and reliable design features a single RF connector, making it ideal for applications that do not require MIMO technology.

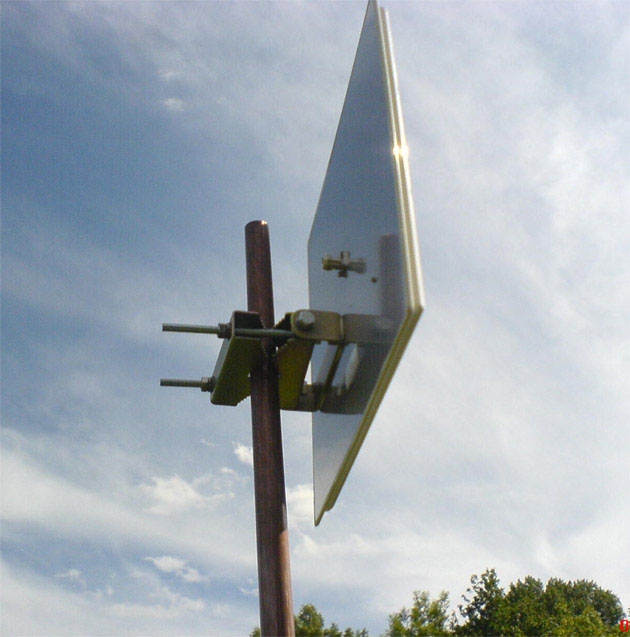

An enclosure is typically mounted on the rear side of the antenna. RAYTRA offers a custom-made aluminum enclosure, or customers can install their own enclosure using the pre-installed mounting studs.

Elektrické vlastnosti	UIP 522.51
Frekvenční pásmo [MHz]	5150 – 5850 MHz
VSWR	1.5

Zisk	23 dBi
Impedance	50
Polarizace	H/V
Erovina -3dB	10°
Hrovina -3dB	9°
Maximální výkon [W]	10
Konektor	1xSMA-f

Mechanické vlastnosti
Materiál anténního krytu	UV stabilní kopolymer ABS-PMMA
Barva krytu	bílá
Výška/šířka/hloubka [ mm ]	340 / 340 / 20
Váha	0.8 kg
Max. rychlost větru	200 km/h

Typical Applications

The antenna is particularly suitable for:

Industrial wireless networks
Telemetry and SCADA systems
Wireless video transmission
OEM equipment
Laboratory and measurement applications
Data links between industrial facilities
UAV and robotic systems
Amateur microwave radio applications

Thanks to its single coaxial RF connection, installation is simple, cost-effective, and highly reliable. The antenna is an ideal choice wherever a high-performance directional antenna is required without the need for MIMO technology.
